• Model NO.：CA5122
• Fuel：Diesel
• Bearing Capacity：Medium
• Brand：FAW
• Condition：New
• Truck Type：Road Wrecker Towing Truck
• Cabin：J5K
• Driving：4X2, 6X4 Optional
• Colour：Red, White, Green, Blue, Yellow
• Steering：Rhd, LHD
• Loading：5 tons
• Transport Package：Nude Packing
• Specification：8ton tow wrecker
• Trademark：FAW
• Origin：China
• HS Code：8705290
• Production Capacity：300PCS,M

Items
Unit
Value
Boom Structure
Rated towing weightkg8400
Max. Lifting weightkg1500
Max. Lifting weight of full extending boomkg800
Effective length of boommm1788
Extension traveling of boommm1200(/)
Elevation of boom (upper/ lower)°7~-10
Platform Structure
Min. Elevation of full extending platform°11
Max. Loading of platformkg3000(××)
External dimension of platform (length×width×height)mm6150×2200×57
Ground clearance of cage floormm1157
Max. Pulling power of winchkg4000
Dia. Of steel cablemm10
Length of steel cablem25
Min. Speed of steel cablem/min4.5




Vehicle
Parameters
External dimensionmm9047×2280×2775
Refitted by
 Qingdao HETANCH Truck Co.Ltd
Drive
 4×2
Axle basemm4800
The whole weight of empty loadkg5665
Load of front axle of empty loadkg2525
Load of rear axle of empty loadkg3140
The whole weight of full loadkg8495
Load of front axle of full loadkg2995
Load of rear axle of full loadkg5500(/)
Wheel base (front/rear axle)mm1810/1740
Front suspensionmm1330
Rear suspensionmm2480
Approach angleº18
Departure angleº13
Max. Speedkm/h99
Max. Grade ability%≥32
Min. Turning diameterm≤19
Min. Ground clearancemm215
Engine model-CA4DF3-13E3/ CA6DF-18E3
Engine emissionml4750
Rated powerHp/r/min130/2500,  180/2500
Max. Torquen·m/r/min430/1500
Fuel type

Diesel
Standard of emission
 Euro II,  III, IV, V
Tire size
 9.25R16(optional 9.00R20-16,10.00R20-16)
Persons
 3Optional:
Lifting craneCrane brand
 XCMG, or Other China brandLifting Capacitytons2, 3 , 5 tons Crane model SK2, SK2.5, SK3, SK5Boom type
 Articulate typeMaximum effective length (mm)1940maximum traction speedKm/h30
Other Product show:

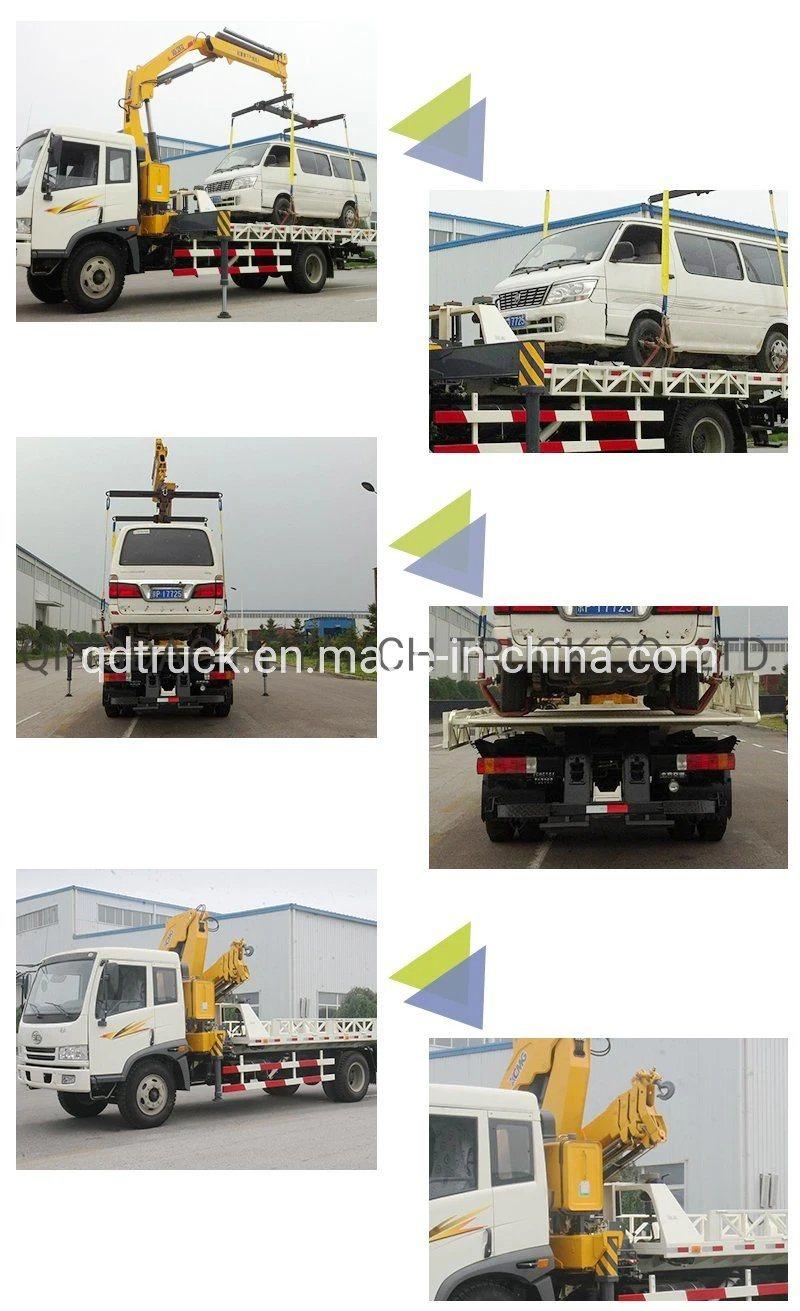

The followed pictures are crane rescue truck. One wrecker could rescue two vehicles at same time. One car could be carried on the flatbed, another vehicle could be towed by the rear fork boom.

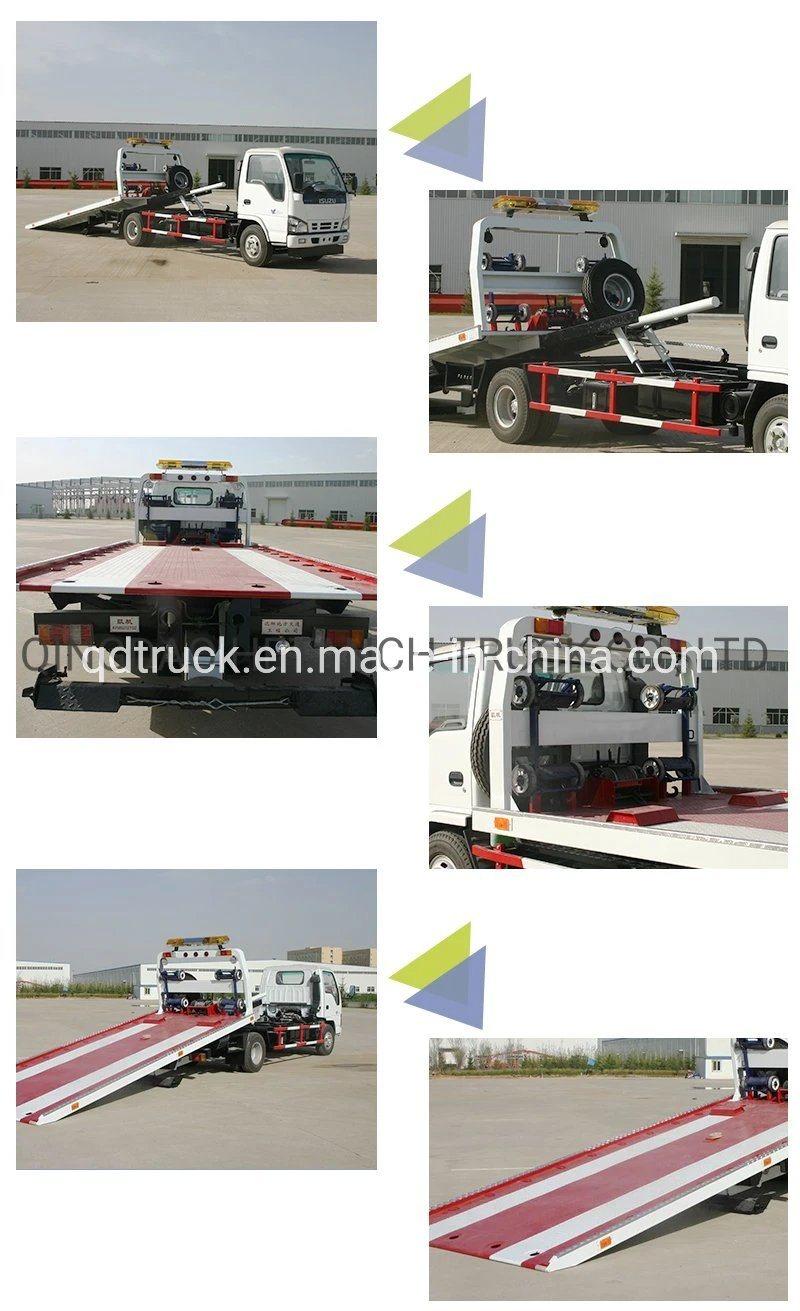

The followed pictures are flatbed slide style rescue truck. Also could rescue two cars, SUV, van at same time.




We also could produce heavy duty wrecker with 6x4 and 8x4 chassis.

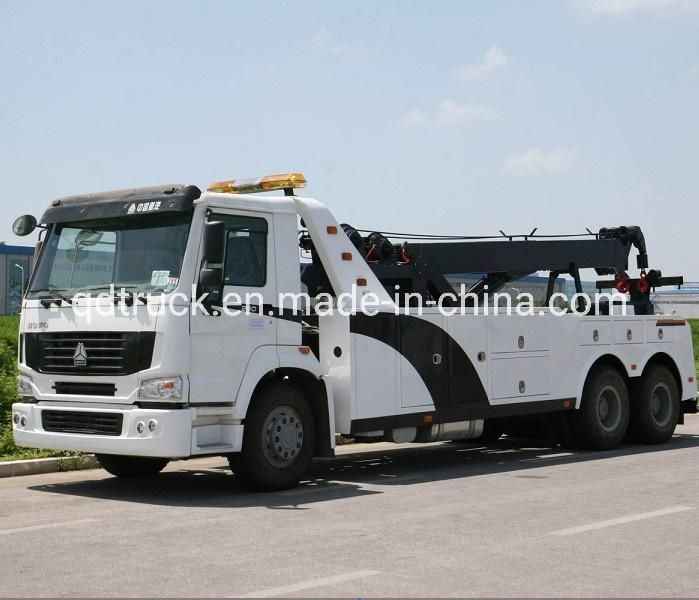

The followed one is 6x4 HOWO truck chassis 20 tons rescue truck. It could used for rescuing trucks and buses.

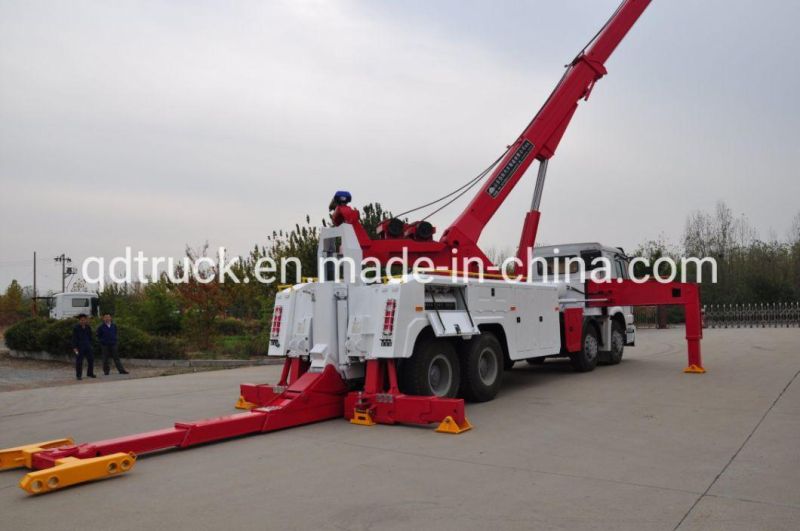

The followed one is 8x4 HOWO truck chassis 50 tons wrecker. It's used for rescuing heavy duty trucks and bused. 50 tons winch, 20~30 tons crane, strengthened and lengthened fork boom, special for rescuing urban buses.

Customer visit
