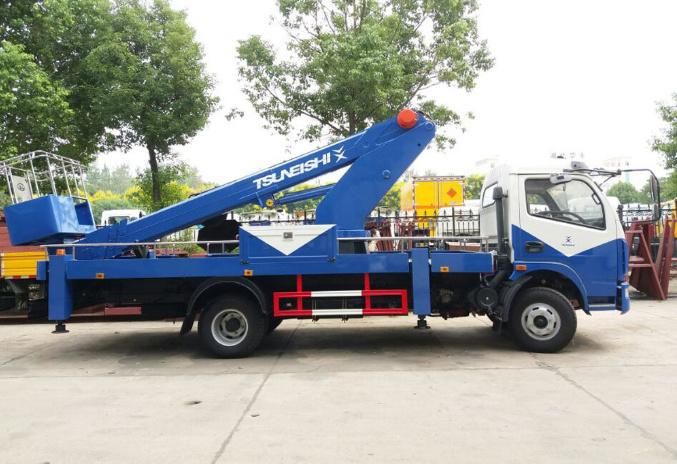

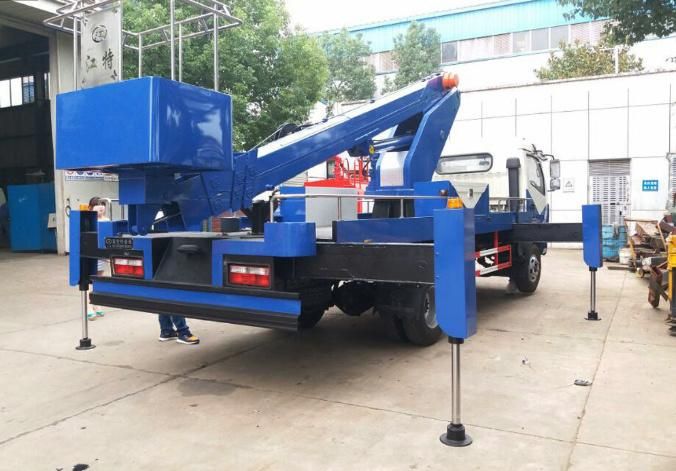

16m 18m 20m 22m 24m 26m Aerial Working Bucket Truck Mounted High-Altitude Work Platform 12/14/16/18/20/22/24/26 Meters Cherry Pickup Aerial Platform Truck
HUBEI RUILI AUTOMOBILE CO., LTD.- Type:C
- Certification:ISO9000, CCC, EEC, CE
- Emission Standard:Euro 3
- Hoesrpower:150-250hp
- Payload:5-15ton
- Fuel:Diesel
Base Info
- Model NO.:CLW5089GKZ
- Transmission Type:Manual
- Drive Wheel:4x2
- Condition:New
- Produce Name:High Altitude Operation Truck
- Bucket Loading Weight:200kg
- Turning Angle:360 Degree
- Max Working Height:22meters
- Working Radius in Max Height:3meters
- Front Legs:H Shape
- Hook Weight:800kg
- Optional Brand:Dongfeng, Isuzu
- Lifting Height:16meter, 18meters, 20meters, 22meters
- Bucket Size:1000X650X1200mm
- Arm Type:Folded or Telescopic
- Max Working Radius:8.0meters
- Working Height in Max Working Radius:15meters
- Rear Legs:H Shape
- Max Hook Height:9.5 Meters
- Transport Package:Naked Package
- Specification:18meters, 20meters, 22meters
- Trademark:CLW
- Origin:Suizhou, China
- HS Code:870590990
- Production Capacity:500unit,Month
Description

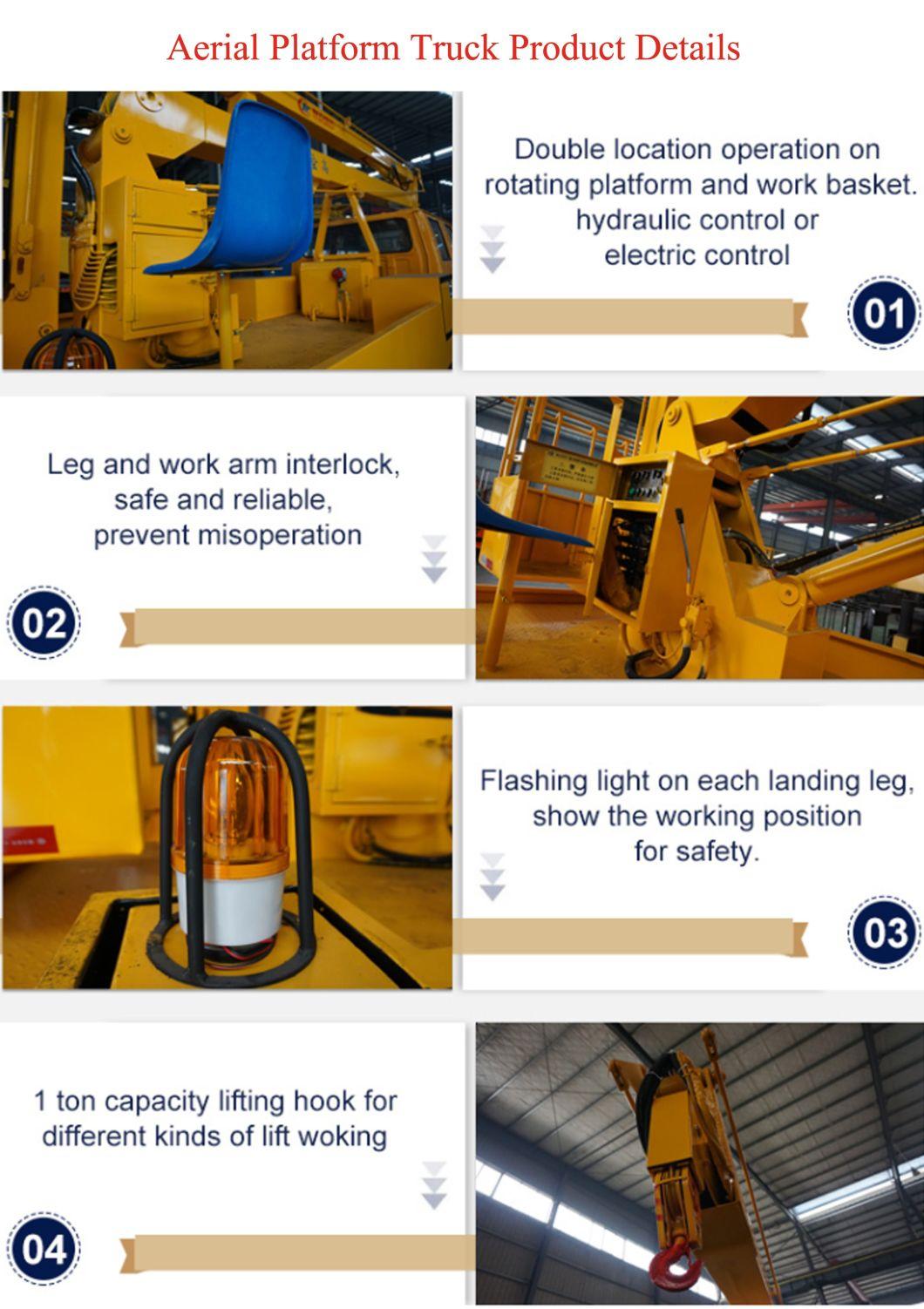

Telescopic Skylift Bucket Truck 22m ~24MeterOverall dimensions 7410x2210x3550 mm Gross vehicle weight 8950kg Wheel base 3800 mm F/R track base 1110/1990mm Approach/departure angle 21/12° Cabin Dongfeng Single Row Cabin, 2 Passenger Allowed, Engine Cummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling Displacement/ HP 3760CC / 141HP Max speed 90 km/h Tire specification 7.60 - 16, 6 Pieces with 1 Spare Number of axles 2 Bucket Max. work height: 23 meters Max. bucket floor height: 22meters Max. work radius: 10 meters Rated load: 200kg Dimension (L×W×H) 1000×650×1200 (mm) Boom Type Four-section telescopic synchronously Rotation angle 360° Elevation angle -12°~80° Outriggers Type: H 4000x4000mm Major Feature Outrigger computer controlled system, one key to stretch out & balance the level of the truck Balancing Automatically Balancing system with Tilting Angle Sensor & level detector Getting on & off Lock Computer control system, Telescopic Arm Control Controlling system in the bucket, with manual control. Platform Control system LED Screen Display with Button control Range Control Large Angle Sensor to Detect the Arm Length & Rotation Range Walkie-Talkie Included
