• Transmission Type：Automatic
• Payload：9 Tons
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Compression Type
• Condition：New
• Transport Package：Nude in CBU
• Specification：9 cubic meters
• Trademark：FOSION
• Origin：China
• HS Code：87059090
• Production Capacity：300 Units Per Year

Basic Info.

Transmission Type Automatic Payload 9 Tons Fuel Diesel Drive Wheel 4×2 Brand Dongfeng Models Medium Usage Compression Type Condition New Transport Package Nude in CBU Specification 9 cubic meters Trademark FOSION Origin China HS Code 87059090 Production Capacity 300 Units Per Year

Product Description

  Features:
1. The whole vehicle has a high degree of automation, high compression ratio, high sealing performance, convenient operation, good environmental protection, simple and efficient garbage collection.
2. Large loading capacity, the actual compression volume is 14 cubic meters, double electric control on both sides, with cab operation, strengthened floor support, two-way compression, open and easy-to-clean sewage tank.
3. The new flat arc box design, high-quality steel and first-line brand valve assembly production.
4. Integrated flashlight and PLC control.

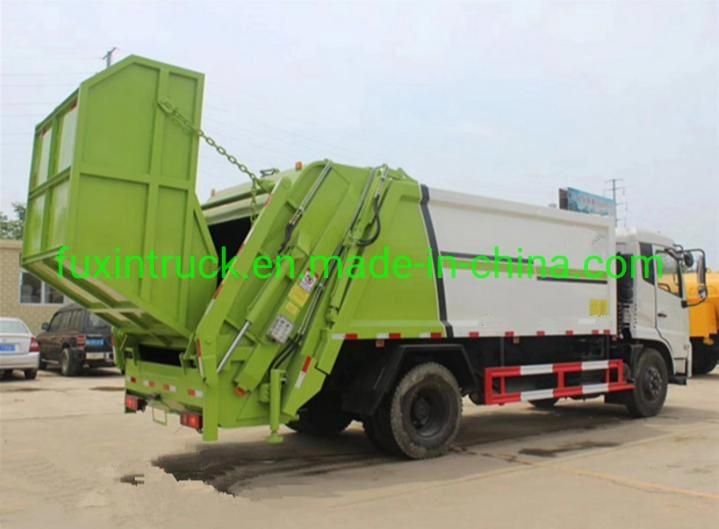

5. The rear turning mechanism can be equipped with plastic hanging buckets, iron buckets, dustpan buckets, etc.

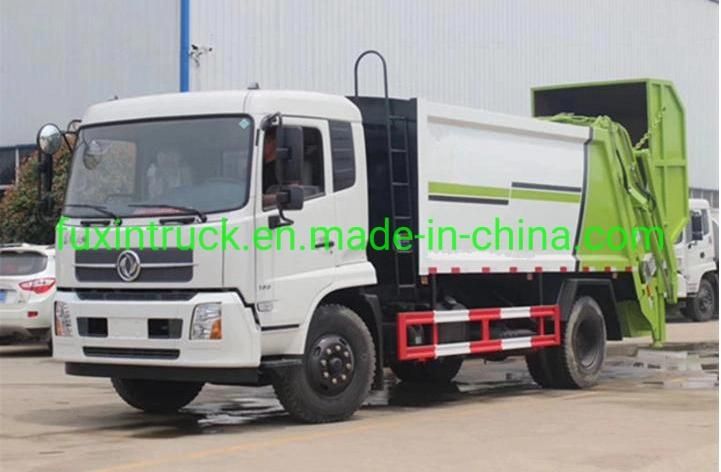

Chassis	Model	DONGFENG Tianjin 14m³ Compression Garbage Truck
	Engine model/horsepower	YUCHAI 190hp
	Chassis model (mm)	EQ1185
	Maximum total mass	18000kg
	Wheelbase (mm)	4500mm
	Front axle/rear axle	5T/10T
	tire	9.00R-20
	Fuel type	Diesel, China emission III
	Beam	280mm
Upload Configuration	Dimensions	8500*2520*3250
	Box volume	14m³
	Outer box	Curved box
	way to control	automatic / manual
	Max pressure of hydraulic system	16MPa
	Multi-way reversing valve/cylinder	Brand valve group
	Control System	Siemens PLC electronic control technology
	Bucket turning mechanism	Optional plastic hanging bucket, iron bucket, dustpan bucket, etc.
