Smart Operation Mini Concrete Mixer Machine Price in India
JINING OKING TEC CO., LTD.- Certification：ISO9000, CCC, TS16949, EPA, CE
- Transmission Type：Automatic
- Emission Standard：Euro 4
- Displacement：9
- Fuel：Diesel
- Drive Mode：8x4
Base Info
- Model NO.：NS1200,NS2000,NS2400,NS3500,NS4200,NS5000,NS5800
- Maximum Horsepower：<200hp
- Condition：New
- Mixing Bucket Capacity：1200-5800L
- Max Load Capacity：2400-10000kg
- Power：55-95kw
- Engine Model：Yunnei,Yuchai Optional
- Total Weight：4500-19800kg
- Speed：30km,H
- Rotating Speed：15r,Min
- Turning Radius：3500-5000mm
- OEM：Accept
- Logo：Accept Customized
- Color：Accept Customized
- Water Tank Type：Single,Double Water Tank
- Water Tank Capacity：280-850L
- Mixing Bucket Tilt Angle：16-20degree
- Bridge：Wheel Deceleration,Mixer Dedicated Bridge
- Transport Package：Export Package
- Specification：4500-19800Kg
- Trademark：OUKE
- Origin：Shandong
- HS Code：8705400000
- Production Capacity：200
Description
Clockwise feeding, Counterclockwise UnloadingMax. load 2400kg 5000kg 3500L 7500Kg Engine model YUNNEI 27GBZ YUNNEI 33GBZ YUNNEI Supercharged YUCHAI4105 Supercharged Power 55KW 65KW 76KW 85KW Tyre 12-16.5-12PR 750-16/12-16.5 16/70-20 1200-R22.5 Travel speed 30KM 30km 30km 35km Mini. turning radious 3.5m 3.5m 4.5M 4.5m Water tank capacity 540L 280L 540L 850L Total Weight 4500kg 6200kg 7600kg 8200kg Overall Dimension 6000*2440*2460mm 6550*2270*2970mm 5770*2420*2900 5900*2900*3300mm

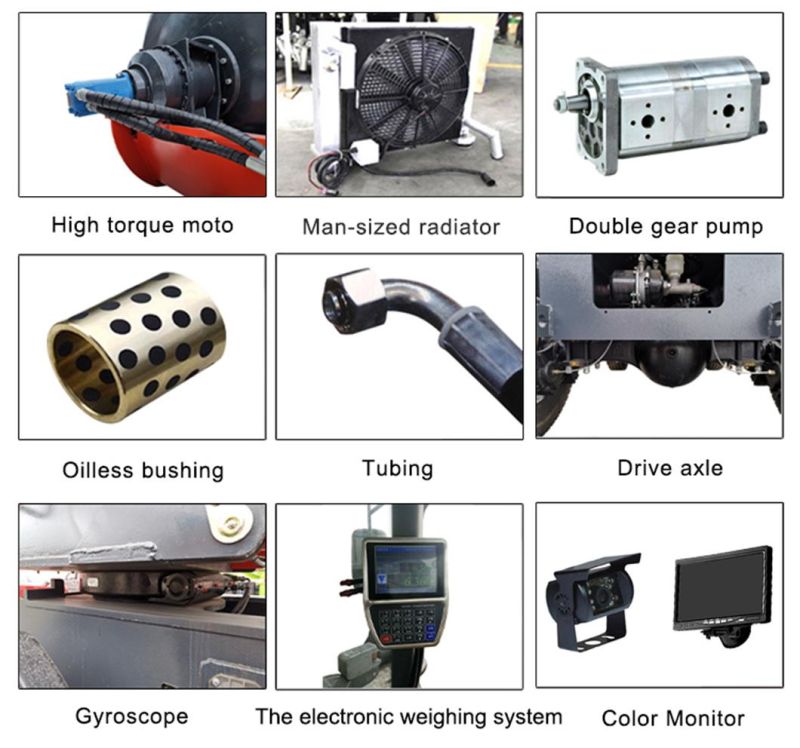

1. High torque motor
Adopting BM5 high torque motor, the reducer is a reasonable ratio of two-stage high torque and higher efficiency
2. Man-sized radiator
Independent cooling system to ensure the control of oil filtration quality and temperature.
3. Double gear pump
High pressure, not easy to wear, increase the oil inlet and outlet to ensure the flow of the whole machine
4. Oilless bushing
Use oilless bearings, only need to inject butter once a year,wear resistance is 100 times that of ordinary sleeves.
5. Tubing
The whole vehicle's oil pipe adopts the 24 °international standard H-type joint, which has no oil leakage and oil leakage, and has a large flow.
6. Drive axle
The driving shaft adopts medium and large wheel side bridge, which is stable Low operating noise.

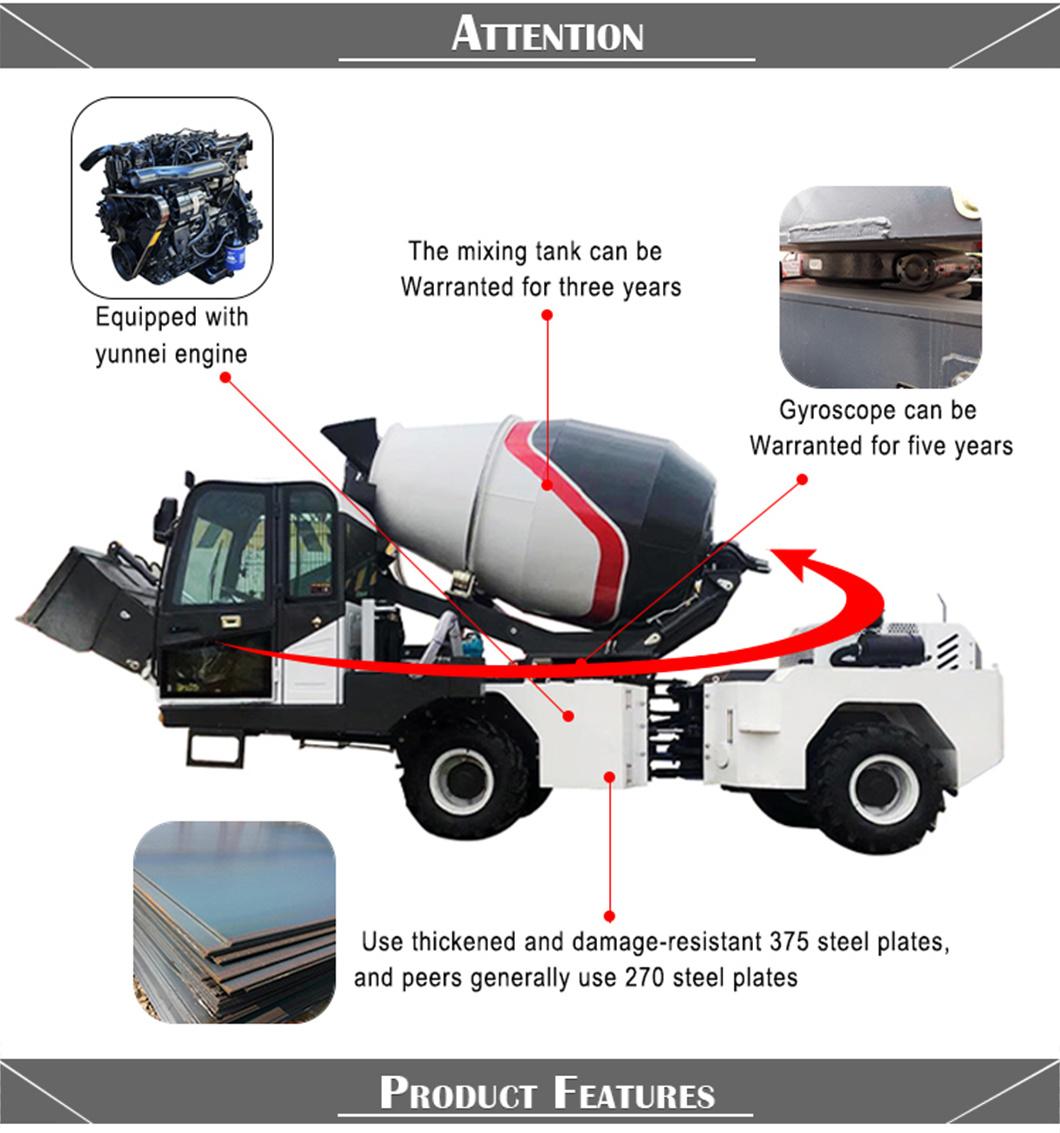

7. Gyroscope
The slewing bearing has a five-year warranty and uses a well-known domestic gyrator (imported worm motor)
8. The electronic weighing system
The Load cells are acting on the drum and technical data are displayed on the shovel loader weigher inside the cab.Two sets of joystick control system are situated on the two sides of driver's seat.
9. Color Monitor
The operation situation from the four sides of machine could be shown clearly on the Color Monitor, which increase the driving safety.
| Model | NS3200 | NS4200 | NS5000 | NS5800 |
| Mixing bucket capacity | 3.2cbm | 4.2cbm | 5.0cbm | 5.8cbm |
| Max. load | 5000Kg | 7500Kg | 7500Kg | 10000Kg |
| Engine model | Yunnei YN33GBZ | YUCHAI YCD4T22T-105 | YUCHAI YCD4J22-110 | YUCHAI YCD4P22T-130 |
| Power | 65KW | 78KW | 85KW | 95KW |
| Tyre | 750-16/12-16.5 | 1670-20 | 1670-20 | 1680-20 |
| Bridge | Wheel deceleration | Wheel deceleration | Wheel deceleration | Mixer dedicated bridge |
| Travel speed | 30Km | 30Km | 30Km | 30Km |
| Mini. turning radious | 3.5m | 3.5m | 3.5m | 5m |
| Water tank capacity | 280L | 532L | 532L | 612L |
| Total Weight | 11080Kg | 15100Kg | 15100Kg | 19800Kg |
| Overall dimension | 6550*2270*2970mm | 7000*2500*3250mm | 7000*2500*3250mm | 7220*2380*3460mm |
1. High torque motor
Adopting BM5 high torque motor, the reducer is a reasonable ratio of two-stage high torque and higher efficiency
2. Man-sized radiator
Independent cooling system to ensure the control of oil filtration quality and temperature.
3. Double gear pump
High pressure, not easy to wear, increase the oil inlet and outlet to ensure the flow of the whole machine
4. Oilless bushing
Use oilless bearings, only need to inject butter once a year,wear resistance is 100 times that of ordinary sleeves.
5. Tubing
The whole vehicle's oil pipe adopts the 24 °international standard H-type joint, which has no oil leakage and oil leakage, and has a large flow.
6. Drive axle
The driving shaft adopts medium and large wheel side bridge, which is stable Low operating noise.
7. Gyroscope
The slewing bearing has a five-year warranty and uses a well-known domestic gyrator (imported worm motor)
8. The electronic weighing system
The Load cells are acting on the drum and technical data are displayed on the shovel loader weigher inside the cab.Two sets of joystick control system are situated on the two sides of driver's seat.
9. Color Monitor
The operation situation from the four sides of machine could be shown clearly on the Color Monitor, which increase the driving safety.
