• Model NO.：2627
• Fuel：Diesel
• Tank Volume：12000~16000L
• Drive Wheel：6x6
• Hoesrpower：251-350hp
• Condition：New
• Tire：12.00-20, 12.00r20, 12.00r24
• Alxes：Mercedes Benz Technology
• Engine：Weichai, Hino
• Steering System：Zf8098, Tas85
• Transimission：6~9-Speed, Single, Dry
• Emission Standards：Euro 2, Euro 3, Euro 4
• Working Pressure：Working Pressure
• Suction Pump：Single Stage Rotary Oil Seal Vacuum Pump
• Cubage：16 Cbm to 20 Cbm
• Wheelbase：4450+1450, 4500+1350;5050+1350
• Transport Package：Nil
• Specification：Customization
• Trademark：BEIBEN
• Origin：China
• HS Code：8705909990
• Production Capacity：10000

Overview
Cubage (T)
12 CBM to16 CBM
Vehicle
Overall dimension(length/width/height)mm
10826×2500×3355
G V W(kg)
26000
Payload (kg)
17960
Kerb mass(kg)
7910
Fuel Type
Diesel
Fuel consumption(L/100km)
29
Top speed
90
Engine
Model
WP10.270
Exhaust/Power(kw)
9726cc/199kw
270HP
Manufacturer
Weichai Motor Co., Ltd.
Type
6-in-line water cool Turbo Charge engine
Chassis
Drive type
6*4/6*6
Wheelbase (mm)
5050+1350
Tread(front/rear)mm
1995/1800.
Front Bridge
7.5T FRONT AXLE
Number of spring axles(front/rear)
9/9+6
Tire specification
12.00-20 ; 12.00R20
Air condition
with
suction system
suction pump
Single Stage Rotary Oil Seal Vacuum Pump
special parameter
Vertical suction heihgt
≥8
working pressure
8500Pa
rotation speed
500
suction speed
98L/S
power
5.5kw
inlet diatmeter
50mm
filling time
Less than 5s
discharge time
Less than 4s
4*2ND1160A414100WP6.1806000LNG80,6,457,10.00-20ND1163A48J4800WP10.27010000LNG80,9,,12.00R206*4ND1255B444450+1450WP10.29015000L
16000L
17000LNG80,9,,12.00R20ND1252B44WP10.3366*4ND1253B45J4500+1350WP7.270E3018000LNG80,9,457,11.00R208*4ND13105D44J1700+4425+1350WP10.27018000LNG80,9,457,11.00R201.Beiben ND1160,ND2060 4 wheel drive sewage suction truck based on Mercedes Benz technology
2.  Common rail engine, World famous weichai engine
3.FAST(Fuller) gearbox
4.Benz front axle and rear axle, for mlitary using.





   Euro 3,     Euro 4  septik truck  sewage tanker  Cesspool Emptying Truck 4*2/4x4ND1160A414100WP6.180ND1163A48J4800WP10.270
WP10.290
Model
ND2160E48J (4*4)
Engine
290 HP EURO II-V
chassis
BeiBen 4x4 mlitary chassis
Outside dimension(mm)
8826×2500×3355
volume of tank
 6000L~ 10000L
Material of tank
Carbon steel
Thickness
6mm
Total mass (kg)
16000
Kerb mass (kg)
7960
Rated payload(kg)
7910
Wheelbase (mm)
4800
Tread(front/rear)
1995/1800
Approach/departure angle
30/28
Front /rear suspension
1410/2616
Minimum turning diameter
20.4
Clutch type
GFX420, diaphragm spring clutch
Gear box type
9JS119,mechanical , 9 forwards, manual
Tire  type
14.00R20 (6+1)
Fuel tank capacity (L)
300
Max.gradient
60
Max. Speed(Km/h)
85
Battery(V)
Electrical system storage battery 2X12V/135Ah
generator
28V-35A
Starter
5.4Kw/24V
A/C
YES
4x2

Beiben Vacuum Sewage Suction Tanker Truck 8cbm
Chassis
Model
ND11601A48J
Traction type
4X2
Driving type
LHD
Driver's cab
Long cabin, A/C
Dimensions in (mm)
Wheel base(mm):  4800

Overall size(mm):  8690x2500x3080
Engine
Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling

Engine model: WP10.270E31

Emission Standard: EUROIII EGR

Maximum output: 270HP /1900 rpm

Number of cylinder:6

Displacement: 9.726L
Clutch
430mm, hydraulically operating with air assistance
Transmission
Fuller 9JS135
Steering
TAS85
Front Axle
Benz front axle 7.5 ton
Rear Axle
Benz strengthened type 13T, double reduction drive axle
Ratio: 5.263
Spring
10/8+6
Types
12.00-20 Bias tyre
No. of tyre
6+1(spare)
Fuel tank
400L Aluminium
PTO
QH50
Electrics
Operating voltage: 24V, negative grounded
Kerb weight(kg)
 6920
Body
Tank Volume
8m3,9m3,10m3,12m3

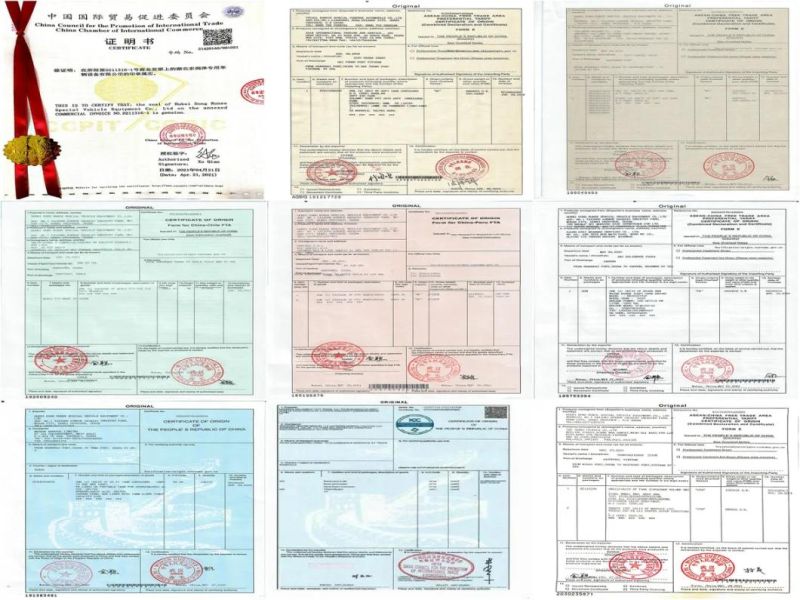

 Certifications

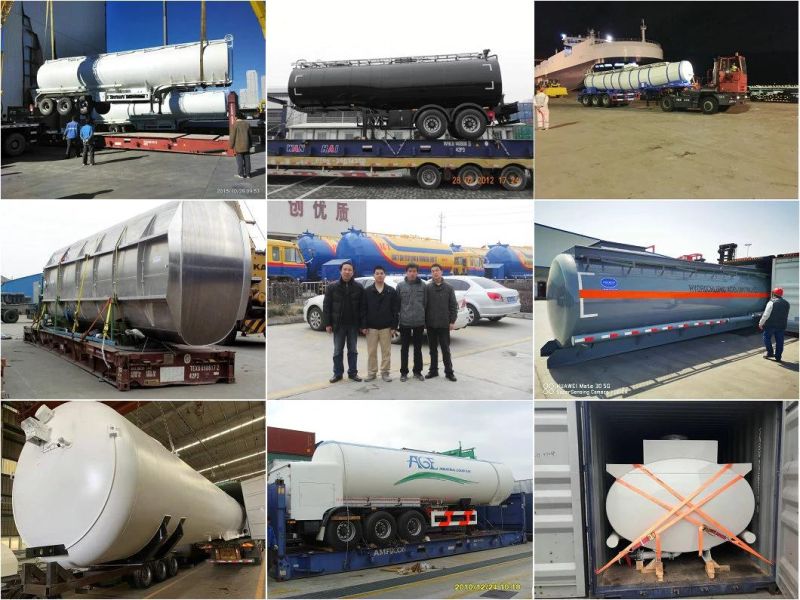

Packaging & Shipping

FAQ

1.Are you trading company or manufacturer ?

We are Group Corporation manufacturer ,have Group Factories Contractor.

2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.

3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
 4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
 6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms? TT 30% as deposit, balance before shipment by TT or at sight.

8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?

Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
