• Model NO.：CLW580LJC
• Transmission Type：Manual
• Payload：3tons, 4tons, 5tons
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：JAC
• Models：Small
• Usage：Hang Barrel Type
• Condition：New
• Tank Capacity：5m3
• Material：Carbon Steel
• Body Thickness：4mm
• Wheel Base：3308 mm
• Engine：Diesel, 129HP
• Tire：7.00r16lt 8pr
• Side Load Bucket：1 Unit
• 1 Unit Bucket Loading Time：7 Seconds
• Garbage Compact Ratio：1,3 - 1,4
• User Manual：Yes
• Operating Video：Supply
• Logo&Color：Customized
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5840*1880*2035mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

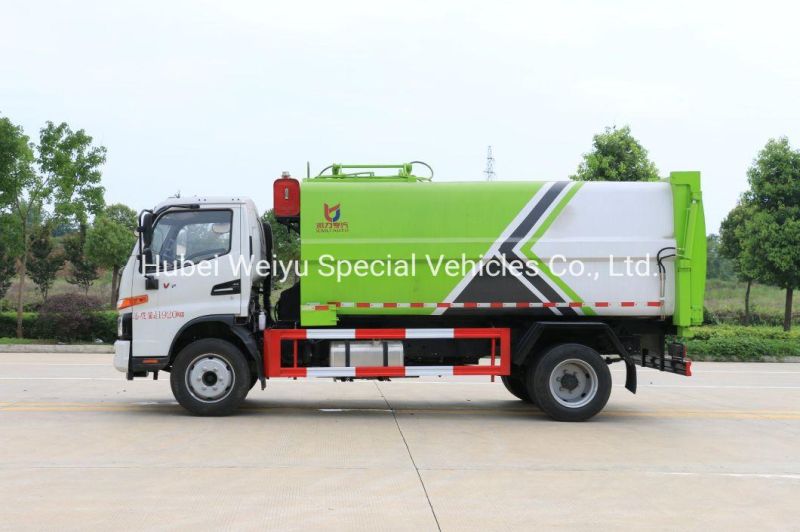

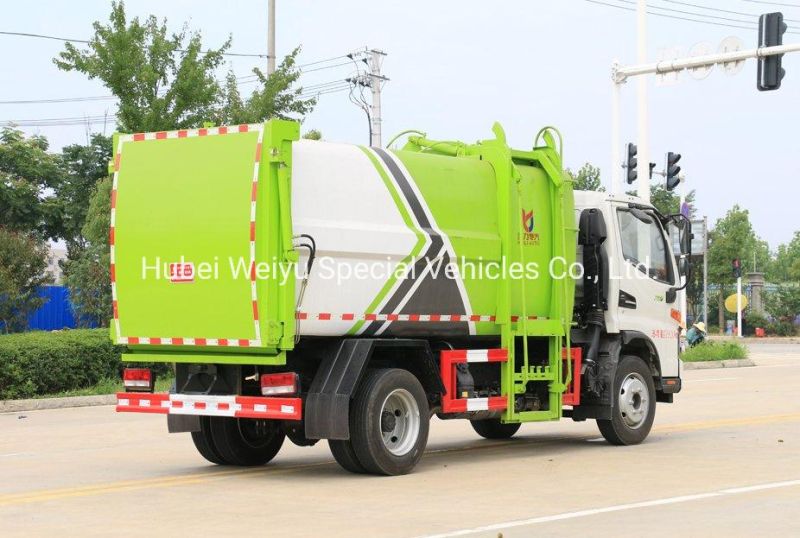

Dongfeng 5CBM Side Loading Garbage Compactor TruckOverall Dimension5840*1880*2035mmGross Vehicle Weight4240kgCurb Weight2155 kgLoading Weight2085 kgWheel Base3308 mmFront / Rear Axle1710 kg / 2530 kgCabinLeft Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,Engine Engine horsepower129HP, EURO4Max Driving Speed100 km/hGear Box6 Forward Gear, 1 Reverse GearTire Garbage BinCapacity8CBMMaterial4mm Carbon Steel for Garbage Bin BodyDesignWhole unit with Leakage Proof DesignWays of LoadingSide Bucket Lifting SystemGarbage Compact Ratio1/3 - 1/4Control SystemOne control Panel on the back, One Control system in back of CabinDispensing System1. Equipped with air-tight dustbin, hydraulic system and operating system.2. Automatic loading, compressing and discharging, all handled by 1 person3. Sewage water collection tank to avoid any pollution during handling.4. Large Pressure, Good Leakage Proof, Convenient OperationDependable Security5. Electrical Control Panel for compacting system.6. Cycling time<14~18sRemarks1. Color is optional2. Customized LOGO painting as per customer request

Working Diagram

Working Show

Other Special Truck Series

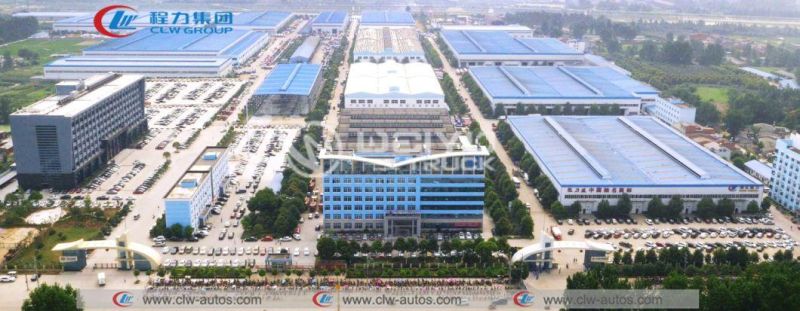

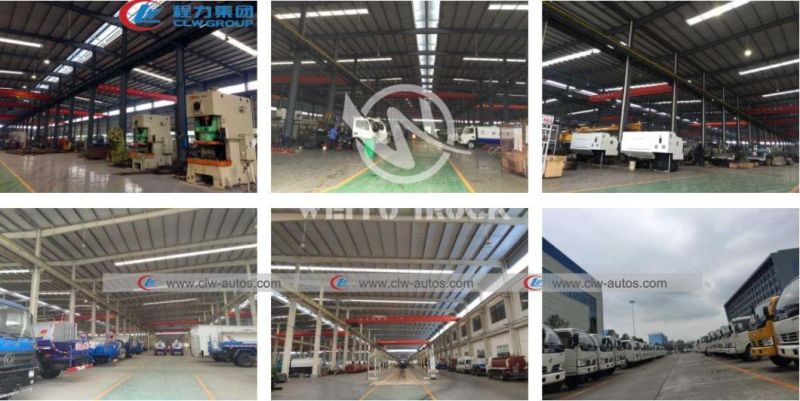

Factory Overview



Overseas Exhibition and Local Support




Customer  Visiting
