16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation

Hubei Weiyu Special Vehicles Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Type：Garbage Compactor Truck
  • Certification：ISO9000, CCC, CE
  • Volume：3001-6000L
  • Emission Standard：Euro 4

Base Info

  • Model NO.：CLW512LJC
  • Transmission Type：Manual
  • Payload：5t
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：FOTON
  • Models：Small
  • Usage：Compression Type
  • Condition：New
  • Chassis Brand：Dongfeng, Foton, Sinotruk, JAC, etc.
  • Campacting Ratio：0.8-0.9 Ton,M3
  • Compression Ratio：3-4
  • Compression Cycle Time：No More Than 15s
  • Unload Garbage Time：No More Than 23 S
  • Hydraulic Pressure：16MPa
  • Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
  • Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
  • Garbage Box Capacity：4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
  • Dirty Water Tank Volume：0.2cbm
  • Hopper Volume：0.8cbm
  • Controlling Way：Manual and Electrical Control
  • Color：as Per Customer′s Request
  • Transport Package：Naked Pack with Wax
  • Specification：6725*2100*2280 (mm)
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension8900×2470×3000(mm)Gross Vehicle Weight18,000(Kg)Curb Weight4300(Kg)Chassis SpecificationChassis BrandDONGFENG, FOTON,JAC,Shacman etc.Drive model4*2CabinSingle Row, LHD, with air condition, audio system, and USB, etc.Number of Passengers2EngineModel140KW/190HPEmission standardEURO 4Displacement5900(ml)Fuel typeDieselGearboxMSB-5MT, 4Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base5100mmFront/Rear Axle Loading6500/11500(Kg)Approach/Departure Angle24/12°Tire7.50-16, 6pc with 1 spare tireMax Driving Speed95(km/h)Upperstructure SpecificationCompector BoxBox Volume16CBMBox Capacity12TonDirty Water Tank Volume0.2CBMHopper Volume0.8CBMCompression density0.8-0.9T/CBMCompression ratio3-4Compression cycle time≤15 sUnload garbage time≤23 sBody ThicknessSide3mm, Carbon Steel-Q345ABottom4mm, Carbon Steel-Q345AThe Electromagnetic ValveUZCT-115/24V, 2setsHydraulic Pressure16MpaControlling WayManual and electrical controlOther Configuration
  1. Tail feed flip frame or flip bucket, PLC one-button control system, etc.

    After-sales Service

    1)Pre-sales Service: Communicate with customers, analyze their needs.
    2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

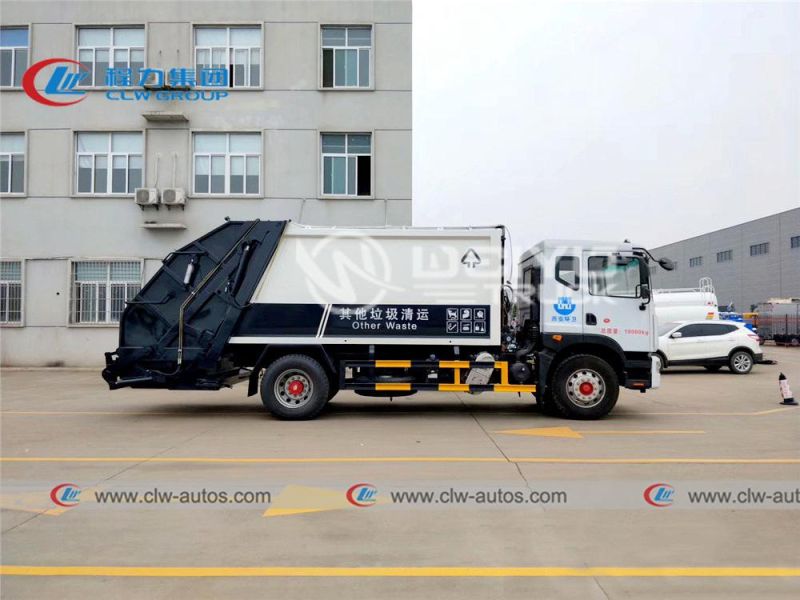

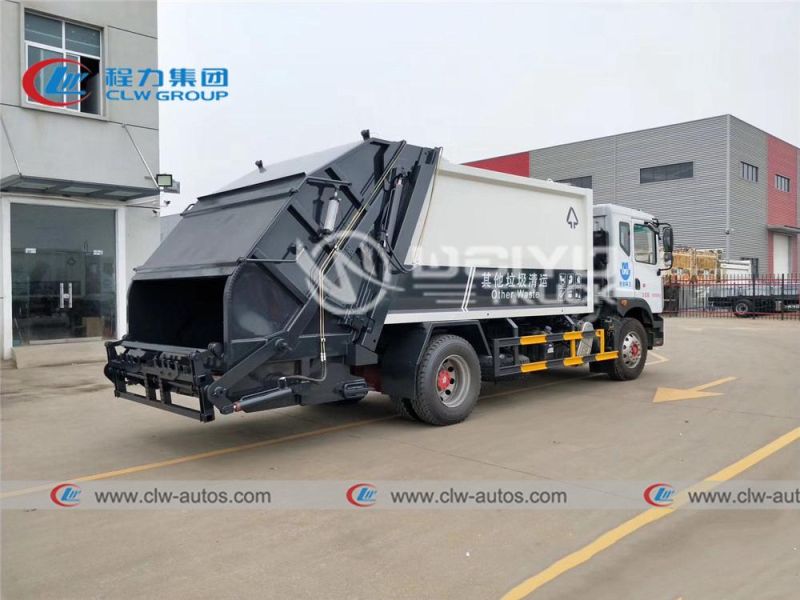

    Reference Photos
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation

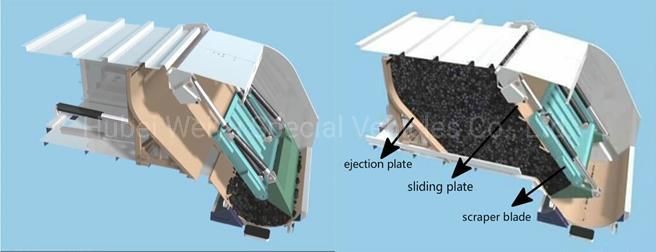

    Main structure:
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation

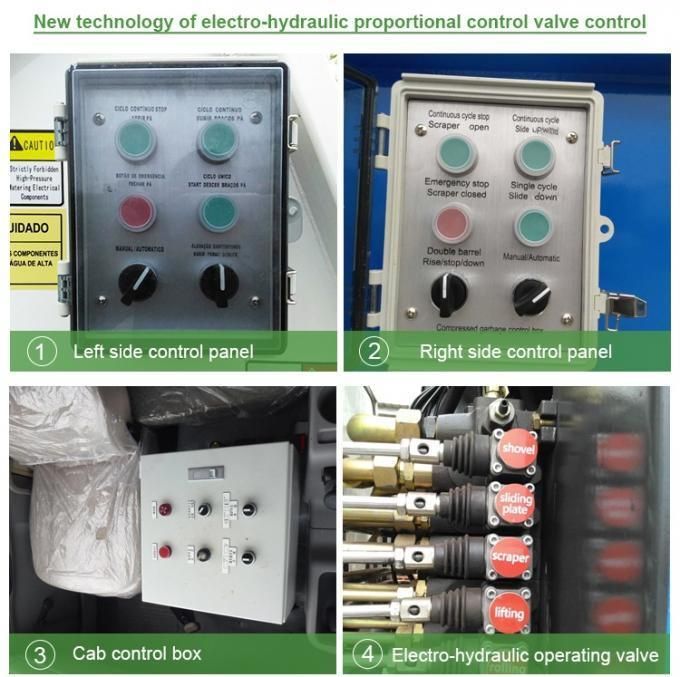

    Main Working System
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation

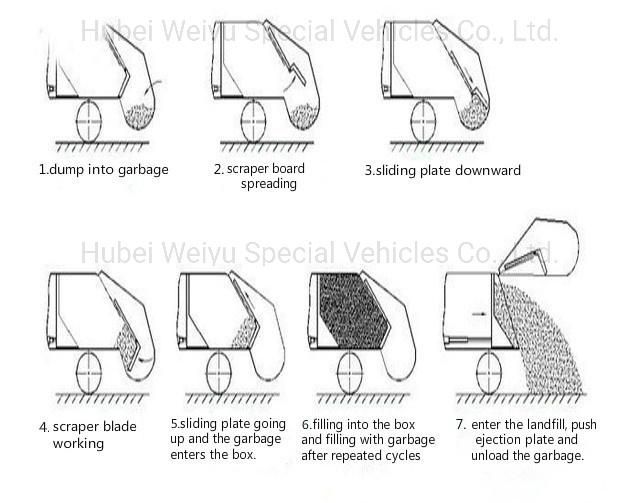

    Garbage Loading and Unloading Process
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation

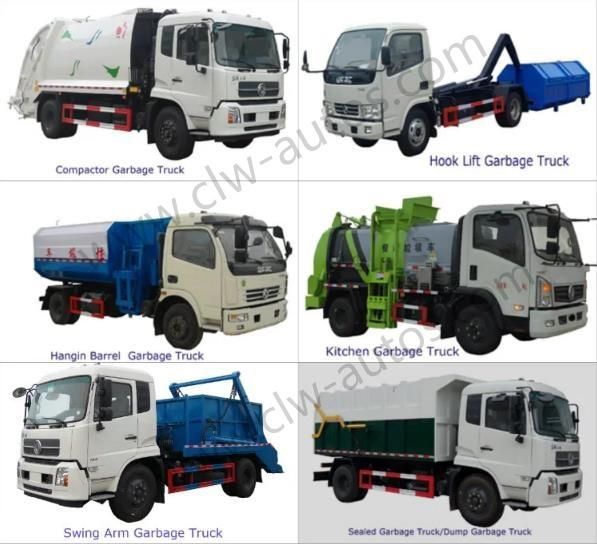

    Various Kinds of Garbage Trucks
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation

    Company Introduction
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation

    Certificates
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation

    Our Overseas Exhibition
    16-18cbm Compactor Garbage Truck Trash Removal Dump Truck for Sanitation
