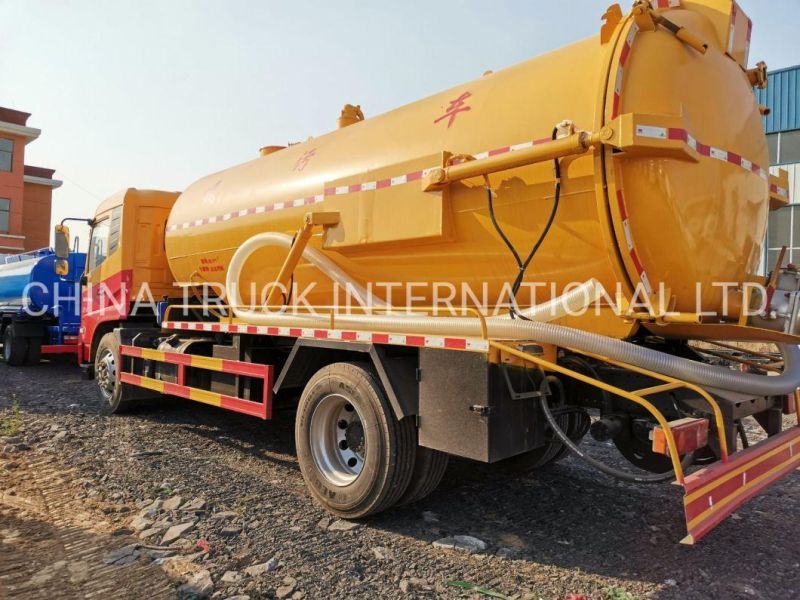

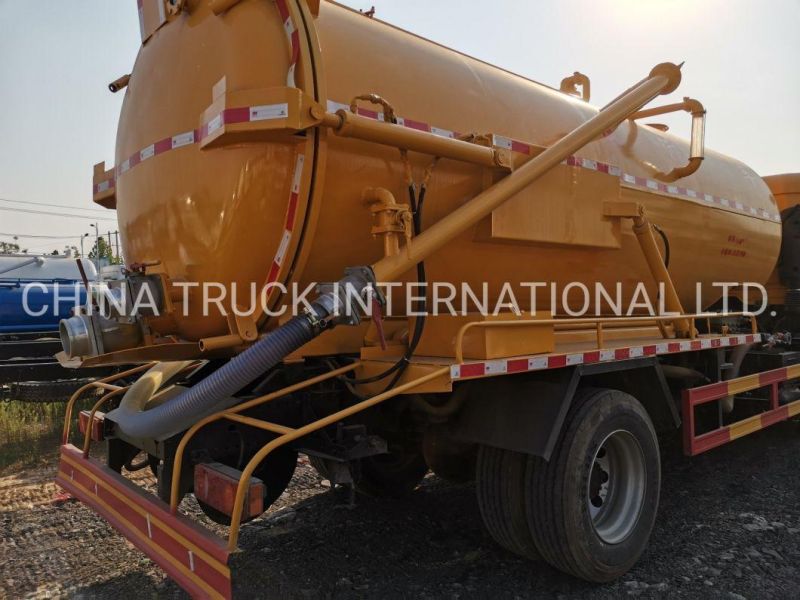

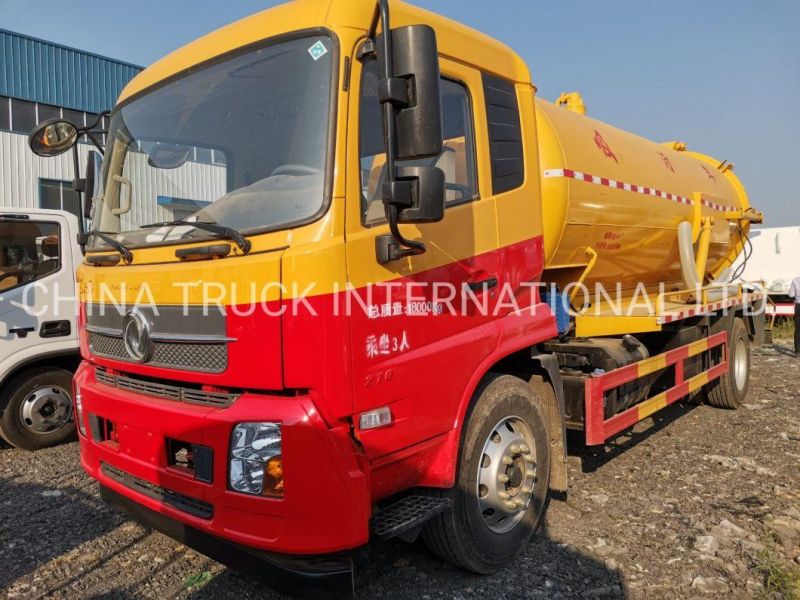

Dongfeng 4X2 New Brand 10.5m3 Sewage Suction Truck
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Emission Standard:Euro 2
- Payload:20T
- Transmission Type:Manual
- Fuel:Diesel
- Tank Volume:10.3m3
Base Info
- Model NO.:DFL1160BX
- Drive Wheel:4x2
- Hoesrpower:251-350hp
- Condition:New
- Delivery:45 Working Days
- AC:Optional
- Seats:3 Peoples
- ABS:Optional
- Transport Package:Nude Packing After Painted Wax
- Specification:standard size
- Trademark:CTIL
- Origin:China
- HS Code:8601101100
- Production Capacity:3000units,Month
Description
Vehicle DescriptionOverall dimensions 8800*2500*3200mm GVW 18000kg Curb weight 7000kg Chassis brand DONGFENG Traction type 4*2 Tanker Description Tanker Capacity 10000L Material 6mm thickness, high quality carbon steel Structure Welding, vacuum tank, Cylindrical Type Double vacuum pump Flux 68(L/S) Rating speed 800~1000(r/min) Shaft power 5(kw) Features Low speed, low fuel consumption, low noise, high vacuum, high efficiency Manufacture Hangzhou WEILONG Pump Co., Ltd. Pipe Suction and discharge pipe Special function Suction time ≤ 5min,
effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,

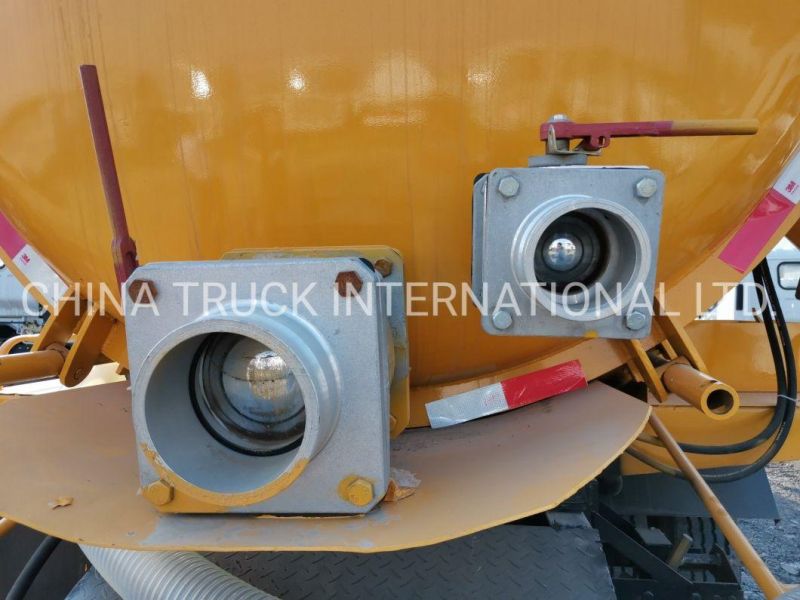

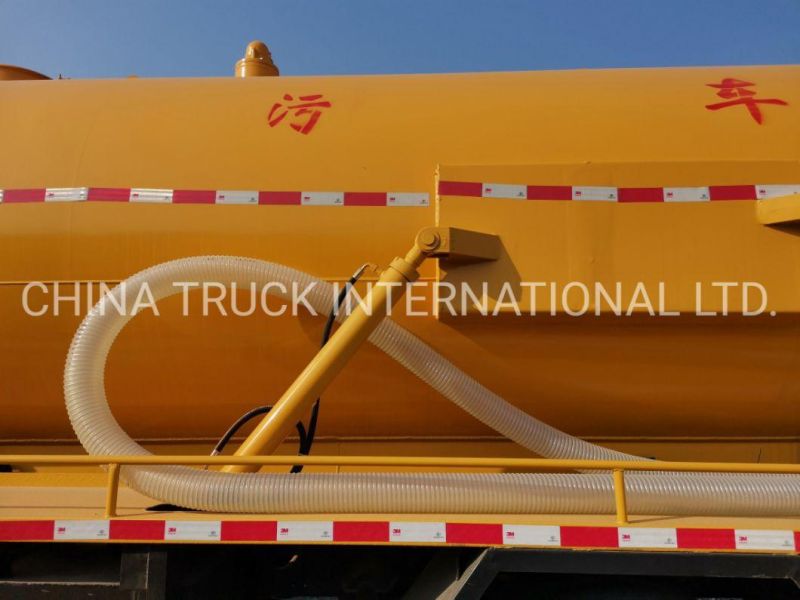

dump angle ≥ 45 Standard configuration Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.

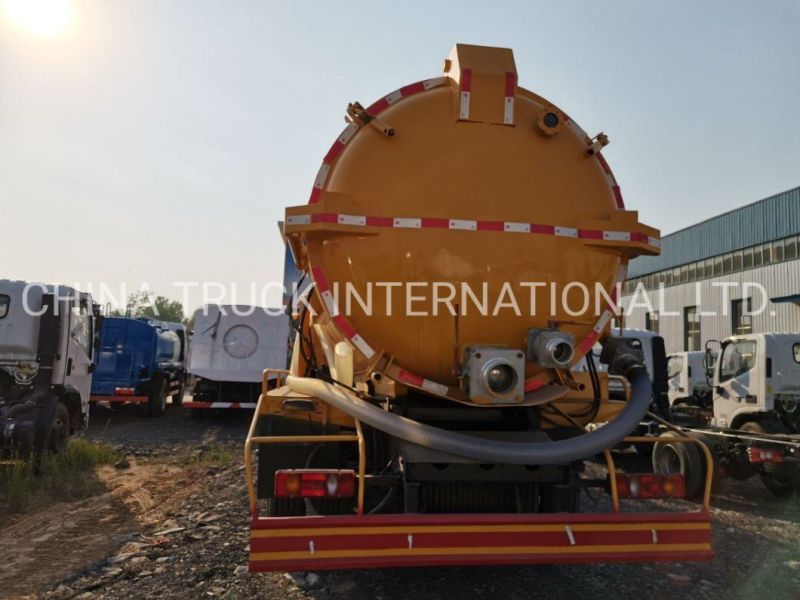

Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically. Optional configuration Tanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tank Chassis DescriptionChassis model DFL5140 Steering LHD/RHD Cab Kingrun one and a half row cab , with A/C Wheelbase 5000mm Tire specification 10.00R20 Tire quantity 6 tires and 1 spare tire Engine Engine model Dongfeng Cummins, B190 33 Emission level EURO 2 Displacement/output 5900ml/140kw Horse power 190hp Gear box Model DF8S1000 Number of gears 8-speed Brake system Air break Axle Front 6T Rear 10T Suspension Front 8 Rear 12+9 Fuel tanker Type Steel fuel tank Capacity 160L
