• Model NO.：Cgj5180gssdfbev
• Trademark：Aerosun SanLi
• Origin：China

Basic Info.

Model NO. Cgj5180gssdfbev Trademark Aerosun SanLi Origin China

Product Description

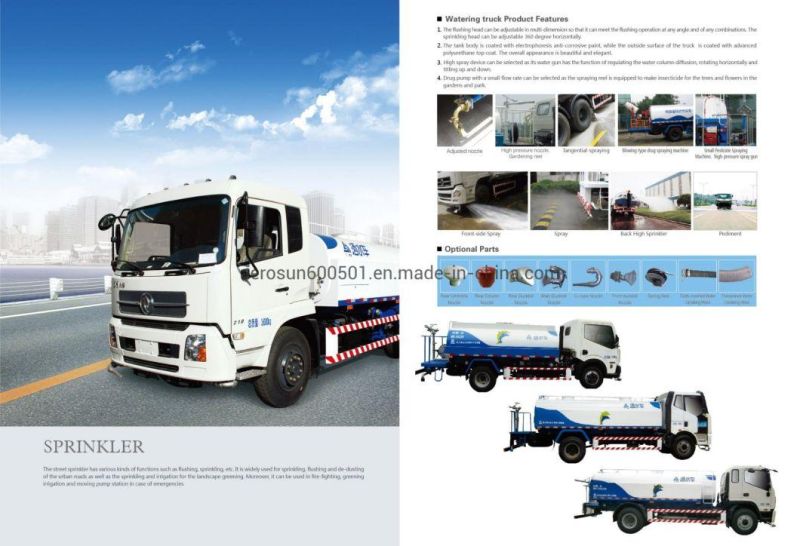

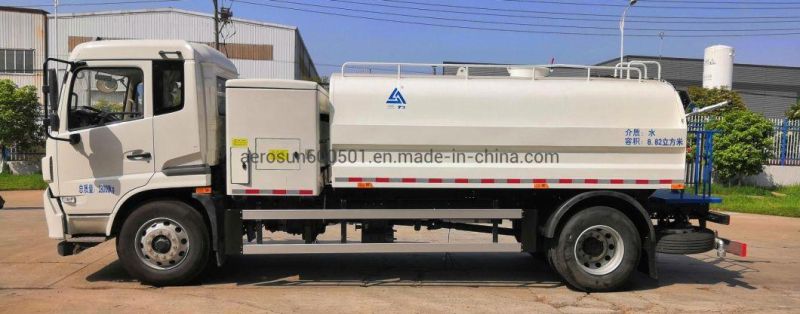

Aerosun 10500L CGJ5180GSSDFBEV Pure Electric SprinklerSanli brand series sprinkler are manufactured by Aerosun corporation, reliable performance, beautiful appearance, simple operation, easy maintenance and other significant characteristics.







1.Main Technical specifications

Model	CGJ5183GSSBJE6
Overall dimensions (L×W×H)(mm)	8060×2530×2810
GVW(kg)	18000
Rated load(kg)	10070
Curb weight (kg)	7800
Rated capacity of tank (L)	10500
Geometric volume of tank (L)	13400
Approach/departure angle (°)	16/15
Chassis model	BJ1186VKPHK-1K
Engine model	D6.7NS6B230 , Euro 6
Number of axles/axle base (mm)	2/4500
Displacement/power (ml/kw)	6700/169
Head of delivery/suction height	110/5
Watering width (m)	≥14
Watering speed (km/h)	5~20
Watering capacity (L/m²)	0.5~2
High spray height(m)	≥36

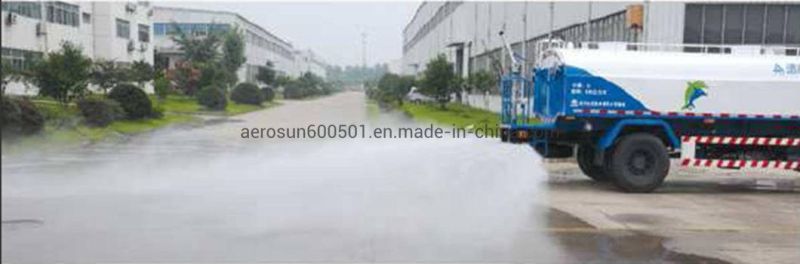

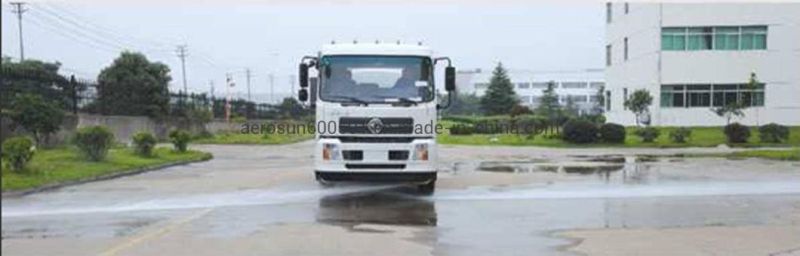

 2. Main function 2.1 Wash and spray the road surface.
2.2 Spraying, watering and maintenance of trees and gardens.
2.3 As a mobile pumping station.
2.4 Transporting function.
2.5 Emergent fire fighting.
2.6 Flush curbstone.
2.7 Flush isolation pile.




3. Main structure3.1 Chassis
Model CGJ5180GSSDFBEV sprinkler adopts Dongfeng EQ1180GEVJ5 Pure Electric chassis, which has the advantages of large power, green and Environmental Protection and good overload performance.

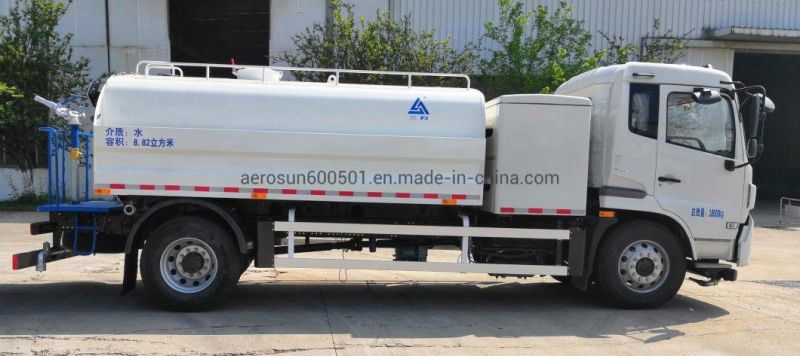

3.2 Water tank assembly
Water tank assembly is the main part of the shape of the sprinkler, consist of water tank, manhole and manhole cover, rubber tube (box), liquid level gauge components.
The water tank is a welded steel vessel, usually made of carbon steel or stainless steel. The tank shell portion of CGJ5180GSSDFBEV type sprinkler welded by 4mm Q235-A carbon steel plate, the head pressed by 4mm Q235-A carbon steel plate, the tank body cross-section is rectangular. The water tank is equipped with a lateral breakwater to reduce the impact of liquid on the tank. Anti- vortexing suspension is set at the outlet at the bottom of the tank to prevent vortexing when water flows out and ensure the flow rate. Fence and manhole set at the top of water tank, easy to clean and maintain the internal tank. In addition, the tank body is also set with a level gauge and overflow pipe, the level gauge can be convenient to observe the height of the injected water in the tank, overflow pipe is set to prevent overflow, remind the operator to stop filling, ensure safety and operability.
3.3 water pump
The 65QZB50/110N water pump is a special water pump for sprinkler, a professional manufacturer of water pumps. With excellent product performance, quality and service life, it has been widely recognized by users and enjoys high popularity and reputation in China.
3.4 Valve
The ball valve of CGJ5180GSSDFBEV sprinkler produced by manufacturer specialized in producing accessories fro oil tanker and water tanker pipe, adopts pneumatic control, easy to operate and reliable in performance.
3.5 Flush head, sprinkler head, high spray gun

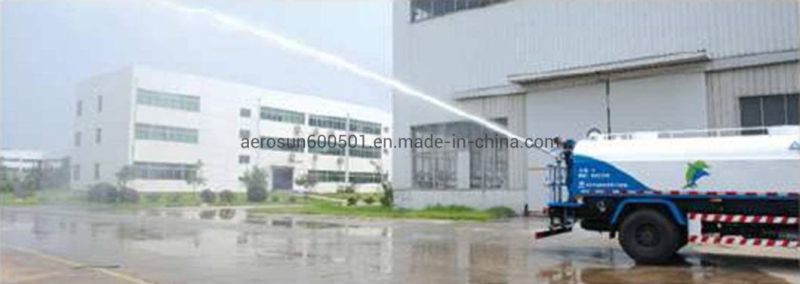

This product is equipped with the three-curved universal duck-billed blunt head, can be adjusted to any direction, easy to use, the surface using galvanized processing. The sprinkler head can be adjusted in any direction within 360° of the horizontal. The high spray gun uses the GPYL type, which is used in domestic sprinkler truck.
3.6 pipeline
The vehicle pipeline mainly uses the national standard No. 20 seamless welding carbon steel pipe, compared with the common market sprinkler galvanized pipe, has high strength, superior welding performance, corrosion resistance, and in low temperature conditions will not be frozen crack advantages. In addition, the sprinkler set up a filter screen in the pipeline, the filter screen set up in the pipeline before the water pump, filter out the flow of debris in the tank, to prevent the pump blocking. In the lowest part of the pipeline, there is a water release joint. In winter, it is convenient to release the water in the pipeline to prevent the water in the pipeline from freezing and blocking the pipeline.
