• Model NO.：CLW5YF68E
• Payload：3tons,4tons,5tons
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Small
• Usage：Hang Barrel Type
• Condition：New
• Tank Capacity：5000 Liters
• Material：Carbon Steel
• Body Thickness：4mm
• Wheel Base：3308 mm
• Engine：Diesel, 117 HP
• Tire：7.50r16 8pr
• Side Load Bucket：1 Unit
• 1 Unit Bucket Loading Time：7 Seconds
• Garbage Compact Ratio：1,3 - 1,4
• User Manual：Yes
• Operating Video：Yes
• Logo：as Per Customer′s Request
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5890x2100x2350mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

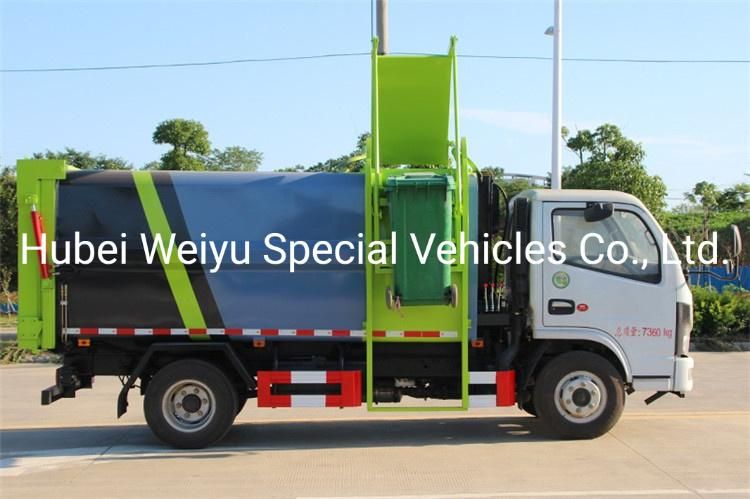

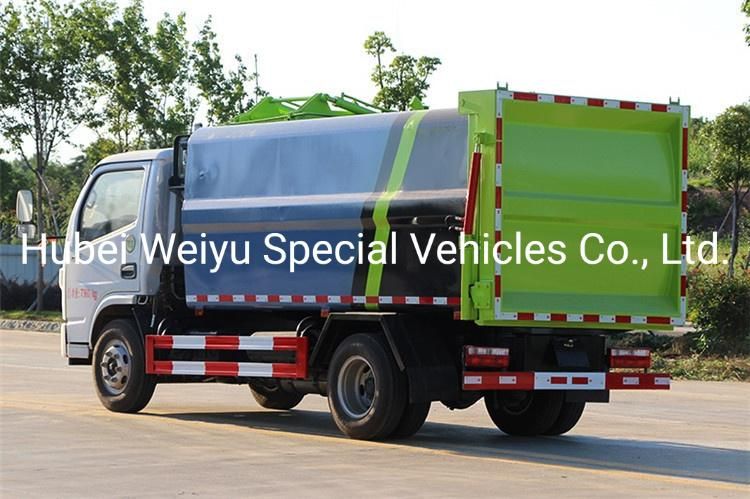

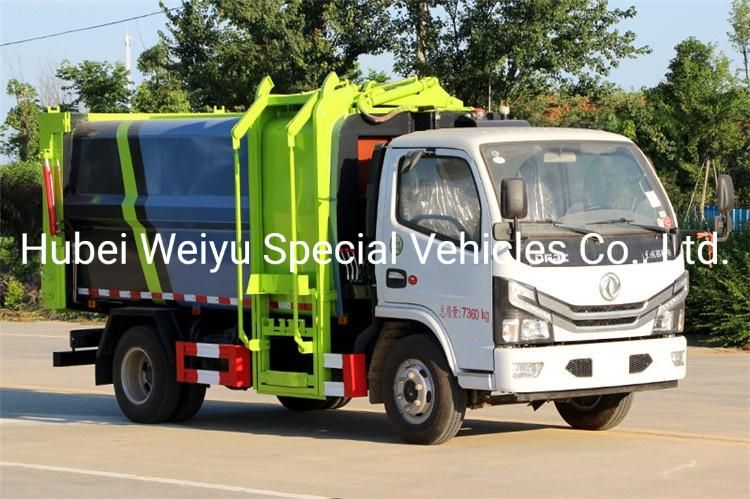

Dongfeng 8CBM Side Loading Garbage Compactor TruckOverall Dimension5890×2100×2350 mmGross Vehicle Weight4495 kgCurb Weight2750 kgLoading Weight1745 kgWheel Base3308 mmFront / Rear Axle1800 kg / 2695 kgCabinLeft Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,EnginechaochaiEngine horsepower117HP, EURO5Max Driving Speed80 km/hGear Box 5 Forward Gear, 1 Reverse Gear,TireGarbage BinCapacity5CBMMaterial4mm Carbon Steel for Garbage Bin BodyDesignWhole unit with Leakage Proof DesignWays of LoadingSide Bucket Lifting SystemGarbage Compact Ratio1/3 - 1/4Control SystemOne control Panel on the back, One Control system in back of CabinDispensing System1. Equipped with air-tight dustbin, hydraulic system and operating system.2. Automatic loading, compressing and discharging, all handled by 1 person3. Sewage water collection tank to avoid any pollution during handling.4. Large Pressure, Good Leakage Proof, Convenient OperationDependable Security5. Electrical Control Panel for compacting system.6. Cycling time<14~18sRemarks1. Color is optional2. Customized LOGO painting as per customer request

Some reference photos:

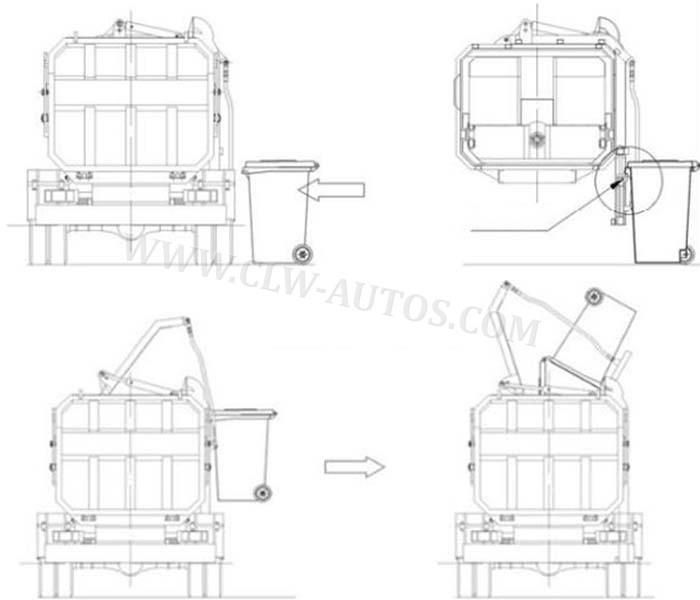

Working Diagram

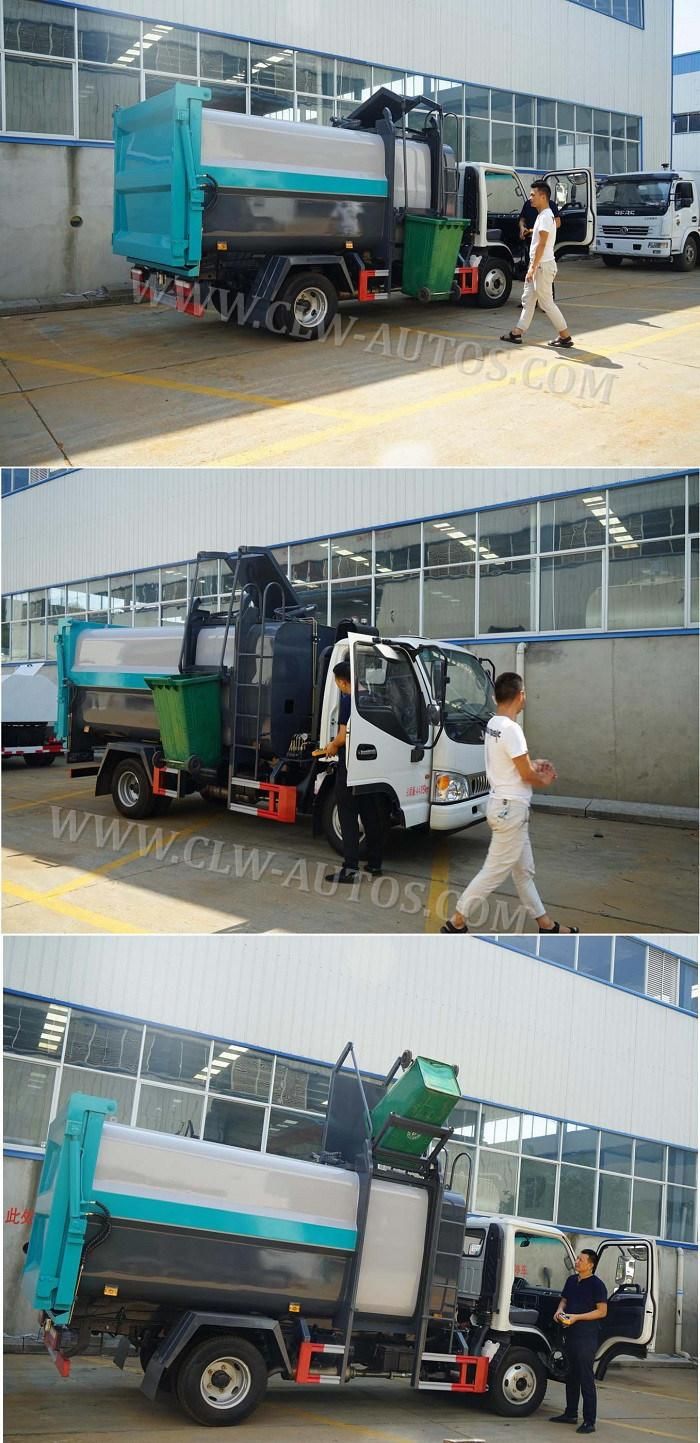

Working Show




Factory Overview


Overseas Exhibition and Local Support
