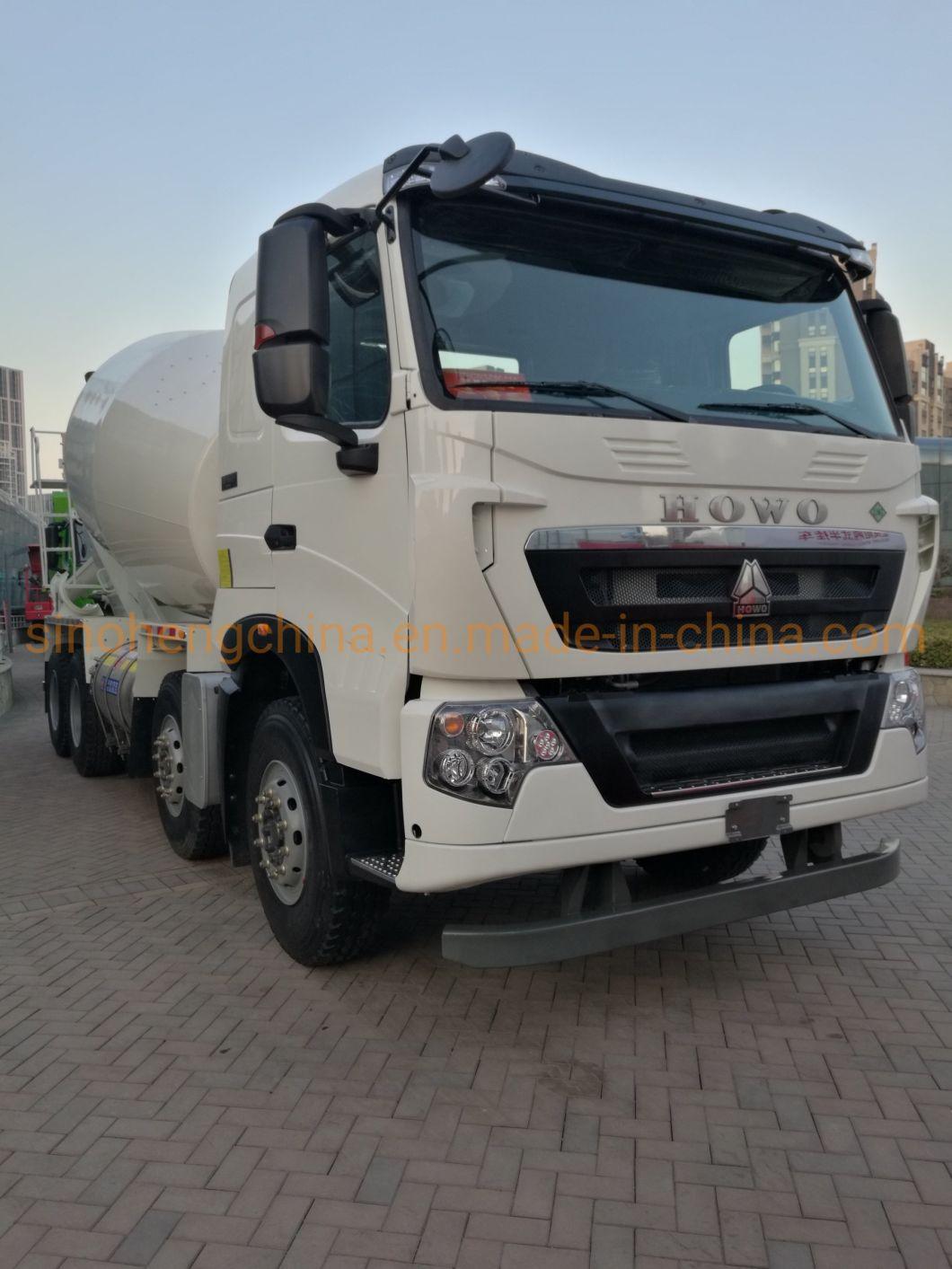

HOWO 6m3 Concrete Mixer Truck, Concrete Transportation Zz1257n3247c
Jinan Sinoheng Import and Export Co., Ltd.- Certification：ISO9000, CE
- Transmission Type：Automatic
- Emission Standard：Euro3
- Displacement：9
- Payload：up to Your Order
- Fuel：Diesel
Base Info
- Model NO.：ZZ1257N3247C
- Drive Mode：6x4
- Maximum Horsepower：300-400hp
- Condition：New
- Geometric Volume：11.7m3
- Mixing Volume：6m3
- Length of Mixing Drum：4217mm
- Rotating Speed：0~14r,Min
- Range of Slump：5~21cm
- Transport Package：Nude Packing
- Specification：ISO9001: 2000, CE
- Trademark：HOWO
- Origin：Jinan, China
- HS Code：8705400000
- Production Capacity：500units,Month
Description
Performance of mixing drumGeometric volume m³ 11.7 Mixing volume m³ 6 Maximum diameter of drum body mm 2250 Length of mixing drum mm 4217 Angle of inclination ° 13.5 Rotating speed r/min 0~14 Charge speed m³/min ≥3 Discharge speed m³/min ≥2 Residue ratio of discharge % <0.7 Range of slump cm 5~21 Hydraulic system Oil pump international brand Motor international brand Reduction gears international brand Hydraulic circuit Closed type Water supply water tank capacity L 450 Way of water supply Pneumatic Complete machine Brand of chassis Sinotruck Chassis model HOWO ZZ1257N3247C Type of driving Left-hand drive Curb weight kg maximum gross weight kg 25000 Type of drive 6×4 Wheel base mm 3225+1350 Tyre 12.00R20 Means of power takeoff Power takeoff by flywheel Notice model External dimensions (length×width×height)mm Engine Model WD615.95E Rated power Kw/r/min 247 Displacement L 9.726 Emission standard GB III
