• Model NO.：CLW51260ZYSD4
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Compression Type
• Condition：New
• Engine Model：Cummins Engine Isde210-30
• Volume of Body：10-15cbm Garbage Compactor Truck
• Steel Grade：Q345b or High Tensile Steel 610 and 700
• Driving Type：LHD or Rhd
• Truck Brand：Dongfeng Cummins, Isuzu, Faw, Sinotruk
• Operation Type：Hydraulic Operation
• Loading Capacity：5tons, 8tons, 10tons
• Brand Name：Dongfeng Garbage Compactor Truck
• Hydraulics：Chinese Famous Brand Jia Heng
• Volume of Garbage Body：5cbm,8cbm,10cbm,15cbm,17cbm
• Transport Package：Waxed Before on Board
• Specification：CCC and ISO9001, ADR, ASME
• Trademark：CLW
• Origin：Suizhou, Hubei
• HS Code：8701909000
• Production Capacity：100unit,Month

General
Truck Name
Dongfeng refuse compactor truck
Dongfeng Garbage Compactor  truck
Dongfeng waste collector truck
Drive Type
4 * 2 , left   hand drive
Loading  Capacity
10-15cbm
Gross Vehicle Weight(kg)
16000
Curb  Weight (kg)
6575
Overall Dimensions L*W*H(mm)
8670 ×2480 × 310 0
Engine
Engine Model
ISDe21040
Engine Brand
Cummins
Fuel Type
D iesel
Power
155 kw/ 21 0HP
Emission Standard
Euro  III
Displacement(ml)
6700
Engine Type
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis
Chassis  Brand
Dongfeng
Front/Rear Axle Load( KG )
6000 / 10000
Tire No.
6
Tire Specification
10.00-20 Nylon tire or 100.00R20 steel tire
Wheelbase (mm)
4500
Axle No.
2
Gear Box
6  speed  forward with 1 reverse,  manual
Brake
Air  break
Radiator
Suitable for tropical climate
Front/rear suspension(mm)
1 430 /2740
Leaf Spring No.
8 / 10+8
Equipment: 1. Equipped with completely sealed dustbin, hydraulic system, operation system.

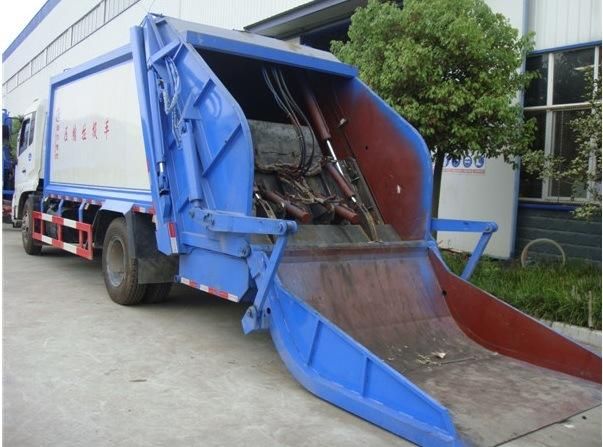

2. Equipped with rear turnover mechanism,can hook dustbin or loading garbage by itself.

3.Equipped screeds and push shovel, compress by itself.High compression ratio.The sewage will flow to sewage tank
automatically, avoid second pollution.

Good sealed performance, easily operation,high safety.
1.rear load garbage compactor truck, Cummins engine, 210hp
2.nice appearance.
3.Simple to operate and highly effective with excellent compaction ratio.
4. Loading capacity is 4m³ to 18m³

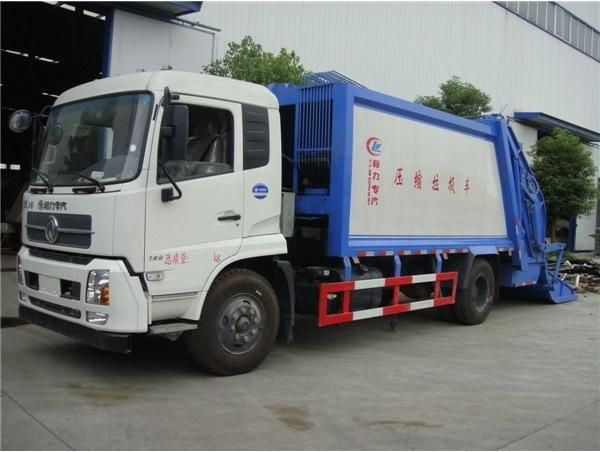

Introduction of compression garbage truck

The compress garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.

The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to

municipal applications where large amounts of mixed industrial and domestic refuse is to be collected.



Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed. It can compact and dump the

garbage automotically. The sewage will flow in the compartment completely to aviod re-pollute during transportation.

 As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 18cbm

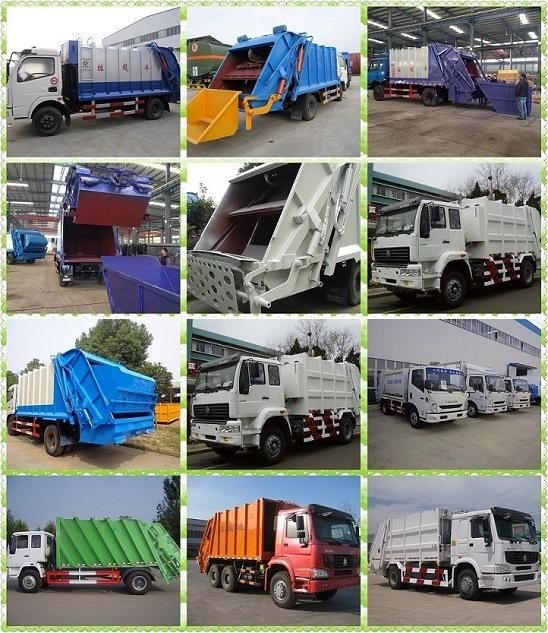

Other garbage compactor trucks we do:
