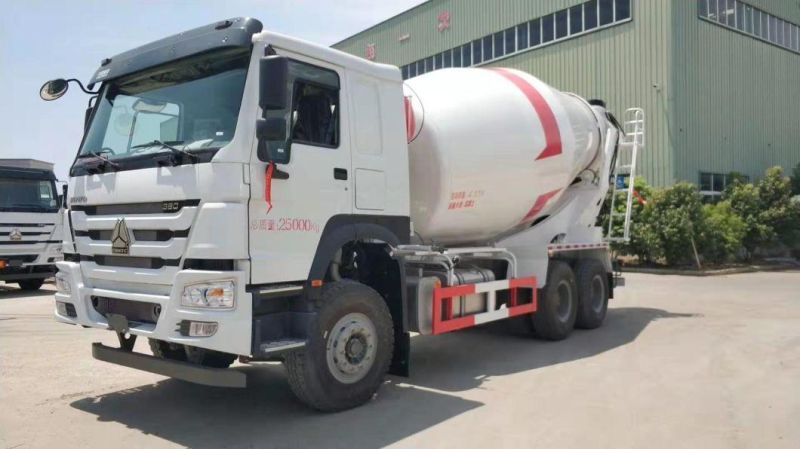

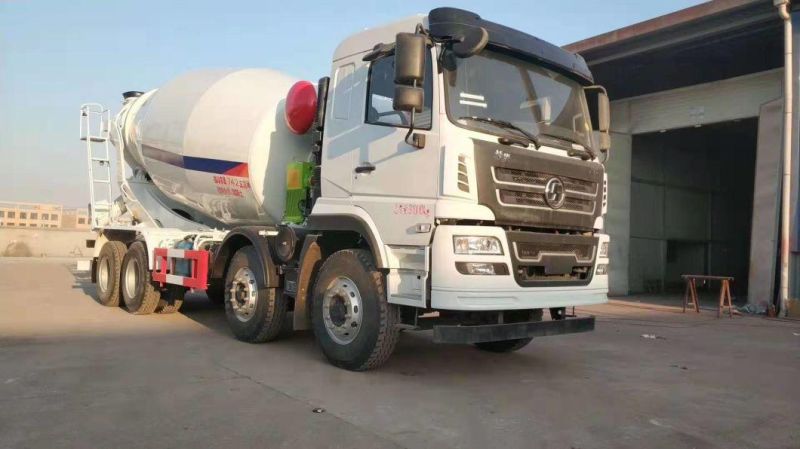

China Shengrun 6 Cubic Concrete Mixer Truck
Shandong Shengrun Automobile Co., Ltd.- Transmission Type:Manual
- Emission Standard:Euro 2
Base Info
- Displacement:9-12
- Payload:13150(Kg)
- Fuel:Diesel
- Drive Mode:6x4
- Maximum Horsepower:200-300hp
- Condition:New
- External Dimensions:11390,10820*2500*4000(mm)
- Total Mass:31000(Kg)
- Curb Weight:17720(Kg)
- Front Suspension / Rear Suspension:1500,2915,1500,2570(mm)
- Axle Load:6500,7000,17500
- Wheelbase:1800+3600+1350,1800+3825+1350(mm)
- Number of Axes:4
- Number of Tyres:12
- Number of Spring Pieces:4,4,-,4,4,12,11,11,-,11,11,12
- Tyre Size:12.00r20 16pr,11.00r20,12.00-20 16pr,11.00-20
- Rear Track:1830,1830
- Front Track:2022,2022,2041,2041
- Transport Package:Nude
- Specification:4-12Cubic
- Trademark:SHENGRUN
- Origin:China, Shandong
- HS Code:3708960665
- Production Capacity:5000pieces,Years
Description
JGMK Mixer Basic Configuration and Main Technical Parameters(6×4,Euro 2,Euro 2,extended Cab)Representative vehicle model ZZ1257M3247W ZZ1257N3247W ZZ1257N3641W ZZ1257S3647W ZZ1257N3841W ZZ12573847W Cab Model HW76 Type Extended Cab,single berth,up/down and front/back adjustable wheel,VDO instrumentand control module,double-locking safety belt.exterior sun visor Engine Model WD615.87 WD615.69 WD615.69 WD615.47 WD615.87 WD615.69 Rated Power Kw/rpm 213/2200 247/2200 247/2200 273/2200 213/2200 247/2200 Maximum torque Nm/rpm 1160/1100-1600 1350/1100-1600 1460/1100-1600 1460/1100-1600 1460/1000-1600 1350/1100-1600 Displacement L 9.726 Type Six cylinders inline,two valve,supercharge intercooler,supercharge postposition clutch φ430diaphragm spring clutch,hydraulic control ir assisted.WD615.69,WD615.47standard430B,WD615.87standard430C Transmission SINOTRUK HW series 10gears transmission,main and auxiliary transmission structure.main transmission with double counter shaft,auxiliary transmission with planetary reduction.WD615.87HW15710 IS STANDARD,wd615.69 and WD615.47HW19710is shaft,auxiliary transmission with planetary reduction.WD615.87HW15710is standard,WD615.69andWD615.47HW19710is standard front axle HF9 drum-type,rated load of 9t Drive axle HC16 double reduction(central reduction+wheel reduction),speed ratio;5.73 4.8 Suspension Front and rear leaf spring suspension,front suspension with shock absorber,transverse stabilizer,rear suspension is disconnected type with transverse stabilizer. Steering system ZF8098 steering gear,ZF steering gear,ZF steering oil pump,system pressure 18MPa Braking system Service brake;dual-circuit air pressure brake;parking brake;parking brake;spring storage energy without air;auxiliary brake;Engine exhaust braking.Engine EVB is optional,and with ABS and optional auto clearance adjusting arm. Electrical system Voltage;24V;generator;1540W;starter;24V,7.5kw;battery;12V/145AH,2pieces Tyre 12.00R20;12.00-24Tyre is optional Tank volume L 300 Kerb weight(vehicle/chassis) 12800/8650 12800/8650 13100/8800 13100/8800 13220/8830 13220/8830 Gross mass(Vehicle,chassis)kg 25000 25000 25000 25000 25000 2500 Rated load kg 12070/16220 12070/16220 11770/16070 11770/16070 11650/16040 11650/16040 Extemal dimensions(length*width*height)mm 8204*2496*3850 8204*2496*3850 8715*2496*2958 8715*2496*2958 9040*2496*2958 8560*2496*2957 Wheelbase mm 3225+1350 3225+1350 3625+1350 3625+1350 3825+1350 3825+1350 Front/rear overhang(vehicle/chassis) mm 1500/(212911275) 1500/(212911275) 1500/(2240/1300) 1500/(2240/1300) 1500/(2365/1400) 1500/(2365/1400) Wheel track (front/rear)m 2022/1850 2022/1850 2022/1850 2022/1850 2022/1850 2022/1850 Minimum ground clearance mm 314 314 314 314 314 314 Approach/departure angle(vehicle/chassis) 16/(32136) 16/(32136) 16/(26/35) 16/(26/35) 16/(26/33) 16/(24/33) Maximum speed km/h 91 91 91 91 91 91 Max climbing ability % 20 20 20 20 20 20 Minimum turning diameter m 15 15 16.3 16.3 17 17 Mixer tank effective volume 6;7;8 6;7;8 9 9 10 10 Remark wd615.47 is optional
Other parameters
Mixing volume: 6 cubic meters. engine D10.34-40 corresponds to oil consumption declaration value of 41.4L/100km, engine D10.38-40 corresponds to oil consumption declaration value of 41.8L/100km, engine D12.34-40 corresponds to oil consumption declaration value of 41.5L/100km, and engine D12.38-40 corresponds to oil consumption declaration value of 42.0L/100km. Install a travel recorder with satellite positioning function. The ABS system model is 4460046300, and the manufacturer is Webco Automotive Control System ( China ) Co., Ltd. The materials used for the side and rear lower protection devices are Q235, the connection mode of side protection is bolt connection, the connection mode of rear protection is bolt connection, and the main dimension parameters of rear protection device are: section dimension ( mm ) is 160× 80, and the height from ground is 500 mm.
