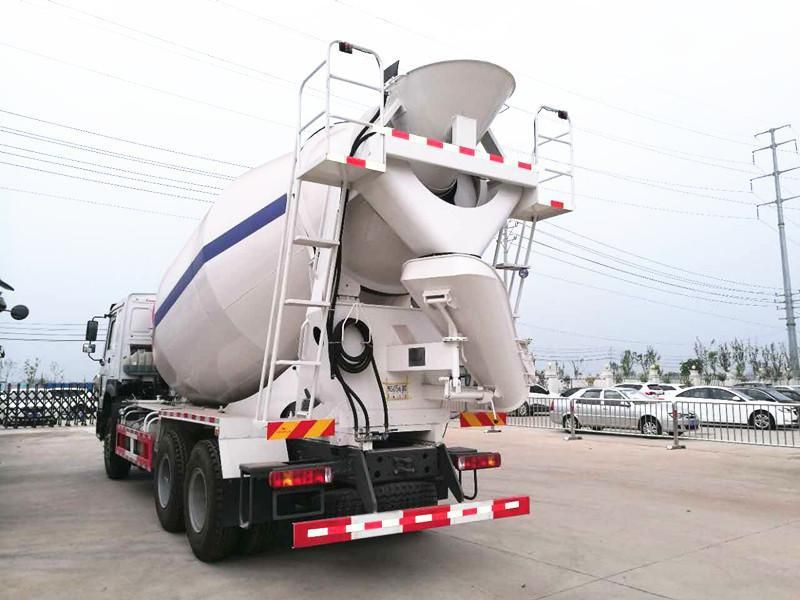

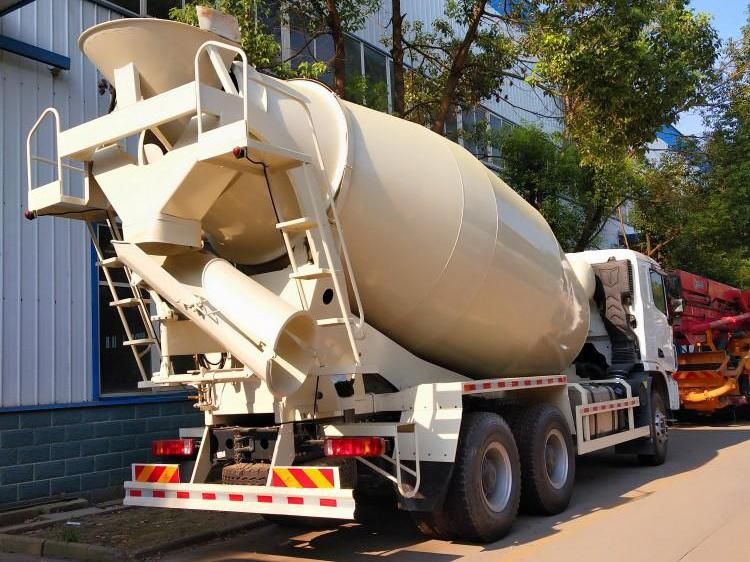

8m3 Shinotruk 6X4 Concrete Mixer Truck with Right Hand Drive
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：One Year Warranty
- Warranty：One Year Warranty
- Transmission Type：Automatic
- Emission Standard：Euro 2
- Displacement：9.726L
- Fuel：Diesel
Base Info
- Model NO.：ZZ1257N3841
- Drive Mode：6x4
- Maximum Horsepower：300-400hp
- Condition：New
- Overall Dimension：10450*2550*3950mm
- Fuel Tank：400L
- Rated Power：336HP
- Transport Package：Nude Packing by Roro or Container Vessel
- Specification：8cbm
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：100units,Year
Description
Chassis
ZZ1257N3841
Engine
Make: Sinotruk
Diesel: 4-stroke direct injection Diesel engine
Engine model: WD615.69 Euro 2
6-cylinder in-line with water cooling, turbo-charging and inter cooling
Maximum output:336 hp(247KW)at 2200 rpm
Maximum torque: 1500 Nm at 1600 rpm
Clutch
Single-plate dry clutch, hydraulically operating with air assistance
Transmission
HW19710, 10 forward & 2 reverse
Max.toque:1900Nm
Front Axle
HF9 Drum Max.Loading:9000Kgs ,Drum Brake
Rear Axle
HC 16 Max Loading:16000Kgs Drum Brake
Steering
hydraulic steering with power assistance and right Hand Driving
Brakes
Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Wheels & Tyres
Tyre: 315/80R22.5
Cab
HOWO76 (one bed),New Seat . Air condition, VOD Panel, Double locking structure belts, sun shade outside, Mp3 and Ratio
Color&Logo
According customer's requirement
Max.Speed
90 Km/h
Dimensions in mm
Wheel base 3800+1350
Front gauge 1320
Rear gauge 2515
Front overhang 1500
Rear overhang 1275
Approach angle(°) 20.5
Departure angle(°) 22
Overall dimension(L x W x H mm) 9420x2500x3930
Weight in kg
Dead weight 12890
Rated loading capacity 11650
Gross vehicle weight 25000
Body
Body dimensions(mm) 7090X2390X2790
Body Weight(KG) 4600
Geometric Volume(M3) 16.77
Mixing Volume(M3) 10
Stuffing Volume(%) 59.63
Feeding Speed(M3/min) ≥3
Discharging Speed(M3/min) ≤2
Discharge Residue(%) ≤0.2
Slump Scope(mm) 50~220
Drum Speed( Min) 0~16
Obliquity 12
Pump Imported
Motor Imported
Reducer Imported
Water supply System 400L/Pneumatic water supply
Drum Materials End socket Use steel plate-8/16MnR, Tank Use steel plate-5/B510. Jar to end socket is 3mm,4mm,5mm,
