• Model NO.：HHZ5256GJBSD36
• Maximum Horsepower：200-300hp
• Condition：New
• Rated Weight：11000kgs
• Axles′ Quantity：3PCS
• Axle Base：3625+1350, 3575+1400mm
• Axle Load：6980,17980kgs
• Chassis：Sx5255gjbjr364c
• Maximum Speed：77km,H
• Overall Length：8975,9270mm
• Overall Wide：2500mm
• Overall Height：3865,3950mm
• Tyre Quantity：10PCS
• Transport Package：in Nude
• Specification：CCC ISO9001 SGS
• Trademark：CHHGC
• Origin：China
• HS Code：8705400000
• Production Capacity：5000 PCS Per Month

  Main Technical ParameterItem No. HHZ5256GJBSD36TypeConcrete mixer truckBrandCHHGCTotal Weight(kg)24960Rated weight11000Fuel TypeDiesel oilCurb weight(kg)13765Axles' Quantity3Emission standardGB17691-2005(GBIII)Axle load6980/17980(2 axles installed side by side)Axle base(mm)3625+1350, 3575+1400Tyre Quantity10Q'ty of the steel plate spring9, 10/12Approach/Departure angle16/18, 16/16Tyre size12.00-20, 11.00-20, 11.00R20, 12.00R20Front wheel base(mm)1939/2036Front/rear suspension(mm)1525/2475, 1525/2770ChassisSX5255GJBJR364CBack wheel base(mm)1800, 1830, 1860/1860Overall height3865/3950Overall length8975/9270Cab capacity 3Overall wide2500Maximum speed77Products' TypesConfiguration for the Concrete Mixer semi-trailerReduction gearsPumpThe motorBrandTypeBrandTypeBrandType9 CBM concrete mixer truckStandard configurationZFP4300Sauer-danfoss T90PV075SauerT90MF75Option 1PMPPMB6.5SPSauer-danfoss T90PV075SauerT90MF75Option 2Shaanxi cuhkTOP P68Shaanxi cuhkARK PV089Shaanxi cuhkARK MF089Option 3ZFCML8(entirety type)Sauer-danfoss T90PV075____10 CBM concrete mixer truckStandard configurationZFP5300Sauer-danfossSPV089SauerTMM089Option 1ZFP4300Sauer-danfoss T90PV075Sauer-danfossT90MF75Option 2Sauer-danfossPMG61.2Sauer-danfossSPV089Sauer-danfossTMM089Option 3PMPPMB6.5SPSauer-danfossSPV089Sauer-danfossTMM089Option 4Shaanxi cuhkTOP P68Shaanxi cuhkARK PV089Shaanxi cuhkARK MF089Option 5ZFCML8(entirety type)Sauer-danfossT90PV100____12 CBM concrete mixer truckStandard configurationZFP5300Sauer-danfossT90PV100Sauer-danfossT90MF100Option 1ZFP5300Sauer-danfossSPV089Sauer-danfossTMM089Option 2Sauer-danfossPMG71.2Sauer-danfossT90PV100Sauer-danfossT90MF100Option 3PMPPMB7.1SPSauer-danfossT90PV100Sauer-danfossT90MF100Option 4Shaanxi cuhkTOP P75RShaanxi cuhkARK PV089Shaanxi cuhkARK MF089Option 5ZFCML10(entirety type)Sauer-danfossT90PV100____14 CBM concrete mixer truckStandard configurationSauer-danfossPMG71.2Sauer-danfossT90PV100Sauer-danfossT90MF100Option 1PMPPMB7.8SPSauer-danfossT90PV100Sauer-danfossT90MF100Option 2Shaanxi cuhkTOP P90Shaanxi cuhkARK PV090AShaanxi cuhkARK MF090A16 CBM concrete mixer truckStandard configurationPMPPMB7.8SPSauer-danfossT90PV100Sauer-danfossT90MF100Option 1Shaanxi cuhkTOP P90Shaanxi cuhkARK PV090AShaanxi cuhkARK MF090A
Remark:
The above concrete mixer truck is just one product we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can supply the customer any type concrete mixer truck he need, based on our 60 years' experience in this field.


ITEM NAMEWARRANTYMAIN FRAMEFRAME1 YEARRUNNING GEARAXLE6 MONTHSSUSPENSION6 MONTHSAXLE BEARING3 MONTHSKING PIN1 YEARWHEEL HUB3 MONTHSBALANCE ARM3 MONTHSTIRE6 MONTHSITEM NAMEWARRANTYITEM NAMEWARRANTYBRAKING DEVICEBRAKE DRUM3 MONTHSSUPPORT DEVICELANDING GEAR6 MONTHSBRKE CHAMBER3 MONTHSSPARE WHEEL CARRIER6 MONTHSAIR RESERVOIR6 MONTHSITEM NAMEWARRANTYOTHERSLEAF SPRING3 MONTHSBRAKE CHAMBER DIAPHRAGM3 MONTHSEMERGENCY RELAY VALVE3 MONTHSBRAKE SHOE3 MONTHSRELAY VALVE3 MONTHS

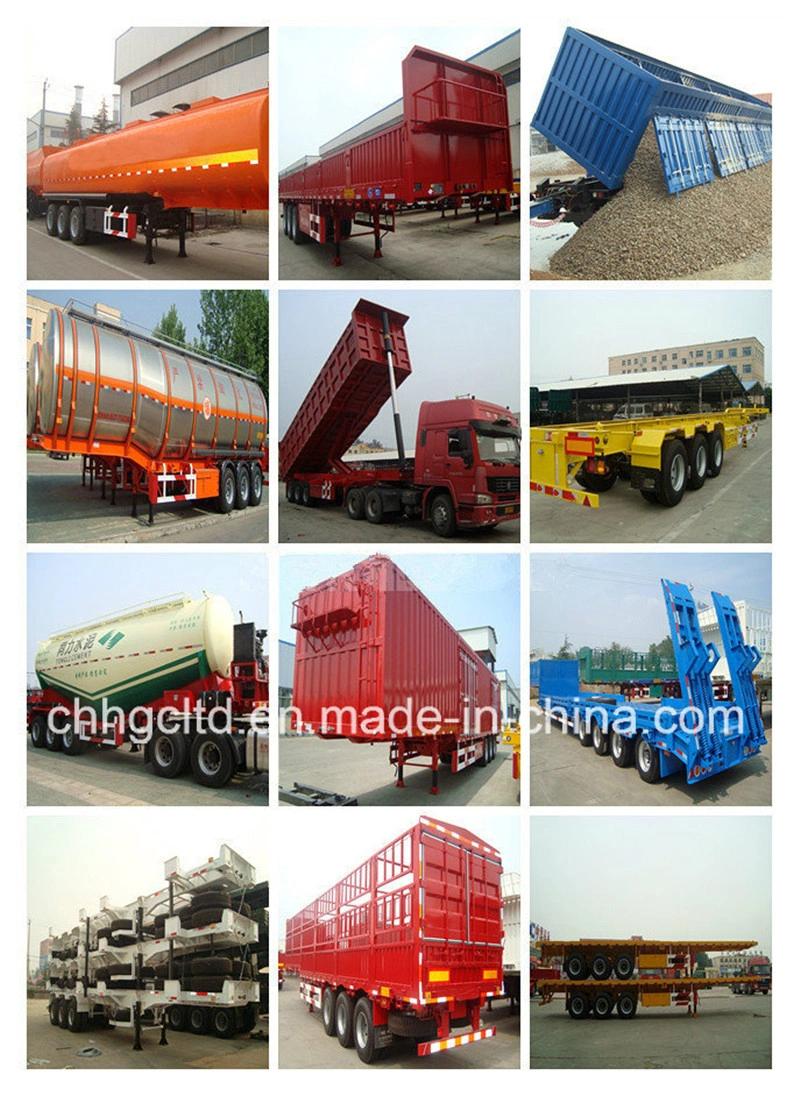

Our Products

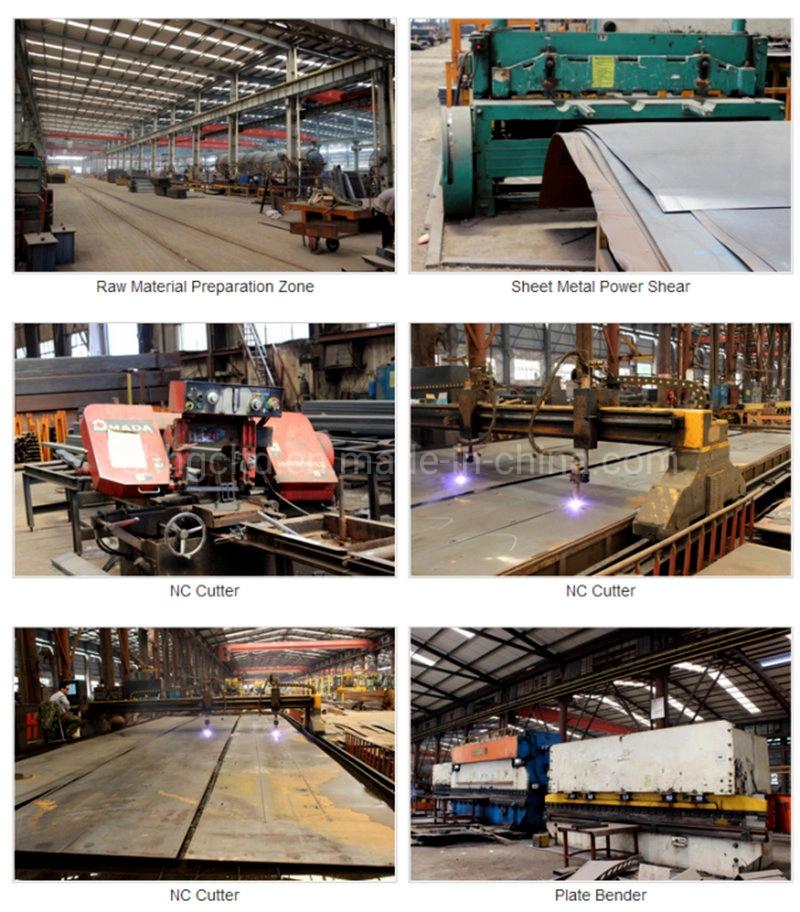

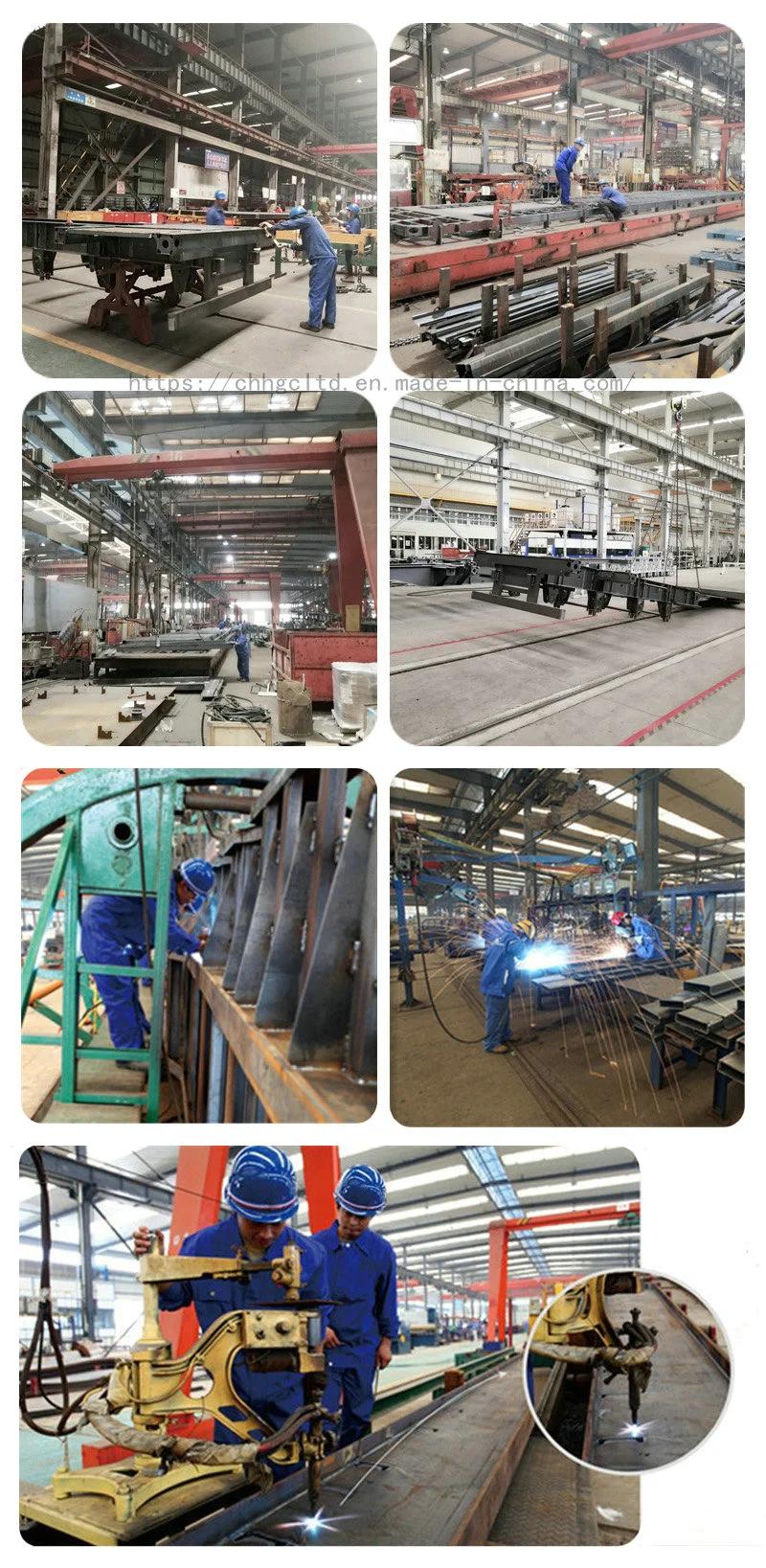

Workshop



Customer Service

We always insist 'The customer is first, the client is best'. We do our effort to provide eligible products to all clients. Now we promise as following:

1. According to the rule of law, the detailed rules of new system of guarantees, we provide guarantees for our products.

2. If there are quality objections in our machine because of designing, making, assembly and material, we'll repair, replacing in time.

3. We'll give the machine to client as its 0 working hour. That's can make sure the client use and maintain better.

4. We'll reply on you in 4 hours as you meet the problem when you use machine according to the manual strictly. If we need support service at work site, we'll settle the problem inside the province in 24 hours and outside province 72 hours. If the machine be aboard, the client should send the broken parts photo to us first, we'll reply on you in 2 workdays.

5. We can help the customer to choose the machine's model according to client's demand. We'll do our best to supply service in the course of sale. And we can give technical consultation, driver training and maintenance man training in our factory.

6. We promise support service for the machine till it reject. If the products were broken down over the period of warranty, we'll support the service without free.

7. Our service department promise answer the phone call every day include holiday.

8. We'll make record for every machine and tracing them in order to get the latest information of the machine. So we can give the better service for you.


Packing & Shipping

1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
2. Cut the rear part which can load two sets in one 40ft container ;
3. Keep the trailer original but load two sets in one 45ft container


FAQ

1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality, our MOQ is 1 set.

2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then, of course, the price can be lowered.

3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.

4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.


Why us?

Multiple structure and multiple materials of tank body to meet individual loading demands! Choice of multiple models and multiple series and multiple series to meet transport demands of different medium!

--It's applicable for the transport of all kinds of liquid chemical products, such as diesel, gasoline, caustic soda, concentrated sulfuric acid, and crude oil. The inside of tank body is corrosion-proof treated to meet the transport demands for all kinds of liquid foods and chemical liquids.

--The tank body is in shape of oval, rounded rectangle, or circle and is designed as per requirements of national standard to improve the operation safety.

--The OEM parts from domestic and foreign renowned brands are adopted, featuring elegance, durability, and reduction of operation cost and repair cost.

--The liquid tanker semi-trailer obtained multiple national patents, featuring light dead weight and low gravity center of whole vehicle.

--The traveling mechanism of semi-trailer products adopts high strength national standard steel to guarantee the resistance against distortion, vibration, and bump and meet the loading requirements on different roads.

--The tank body adopts the shot blasting, phosphating, and derusting processes and high grade polyester powder coating, featuring high paint adhesion and elegant, shining, and lasting performance.

--The whole vehicle adopts special electric harness with explosion-proof and contamination-proof to guarantee circuit safety.


Our Advantages

1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect. ), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely shipment.


Quality Control

1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company
3- We provide out-standing quality assurance
4- No any quality complaints for 9 years.


Perfect Service & Support

1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service & product maintenance
