• Model NO.：CSC20191014
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Production Name：10 Wheels 10000L Sewer Suction Truck
• Name：Sewage Truck Vacuum Tank
• Pump：Special Vacuum Pump
• Steering：Hydraulic Power Steering
• Chassis Brand：Sinotruk HOWO, Dongfeng
• Color：Customer′s Requirement
• Drive Type：4X2 6X4 8X4 Rhd,LHD Drive
• Horse Power：98HP-420HP
• Warranty：One Year for Axles, Engine, Gear Box
• Transport Package：Nude or Waxed Before Shipment
• Specification：6450X2500X3660
• Trademark：Chusheng
• Origin：Hubei, China
• HS Code：8701200000
• Production Capacity：500 Sets ,Month

Cabin

2080 Cabin with two seats, one sleeper. With A/C. With left hand driven. 70° hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

(L x W x H)mm

8400x2400x3100

Wheel base  (mm)

4500

Wheel track  (front/rear) (mm)

1805/1800

Approach/Departure angle(°)

19/11

Weight in KGS

Tare Weight

7000

Loading Capacity

8000

Front axles loading capacity

1x5000

Rear axles loading capacity

1x10000

Max. driving speed(km/h)

95

Engine

Brand

Cummins

Model

 ISF3.8S3168

Type

Turbo-charging and inter-cooling, Bosch high pressure common rail high pressure direct injection

Horse Power(HP)

168HP

Emission standard

Euro2

Gearbox

DC6J65TC, 6 forwards & 1 reverse

Fuel tank (L)

150L alloy fuel tank

Tire

8.25R20 all radial tubeless tire ,7 pieces

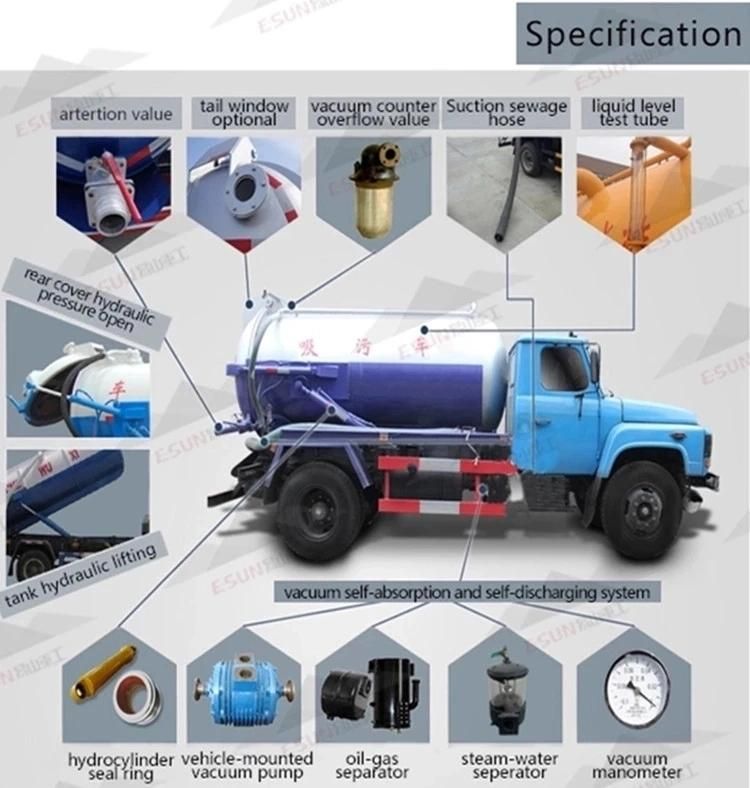

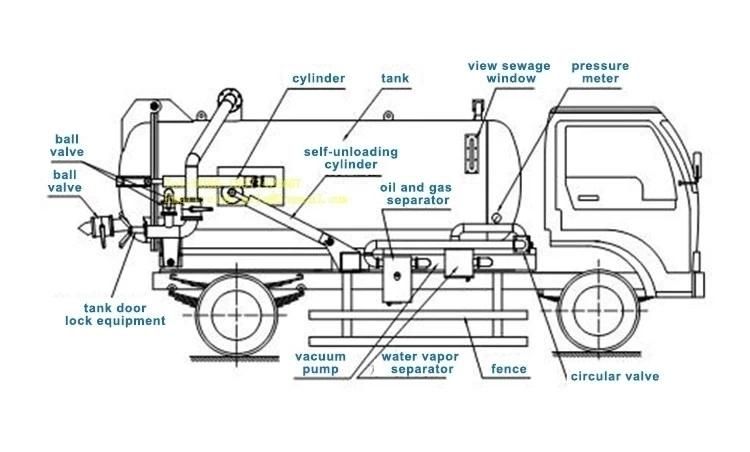

Tank specifications

1, Tank size: 8 cbm

2, with Hydraulic system, the Tank can be lifted up and the tank rear cover openable

3, Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise)

4, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment

5, Time for full suction<5min

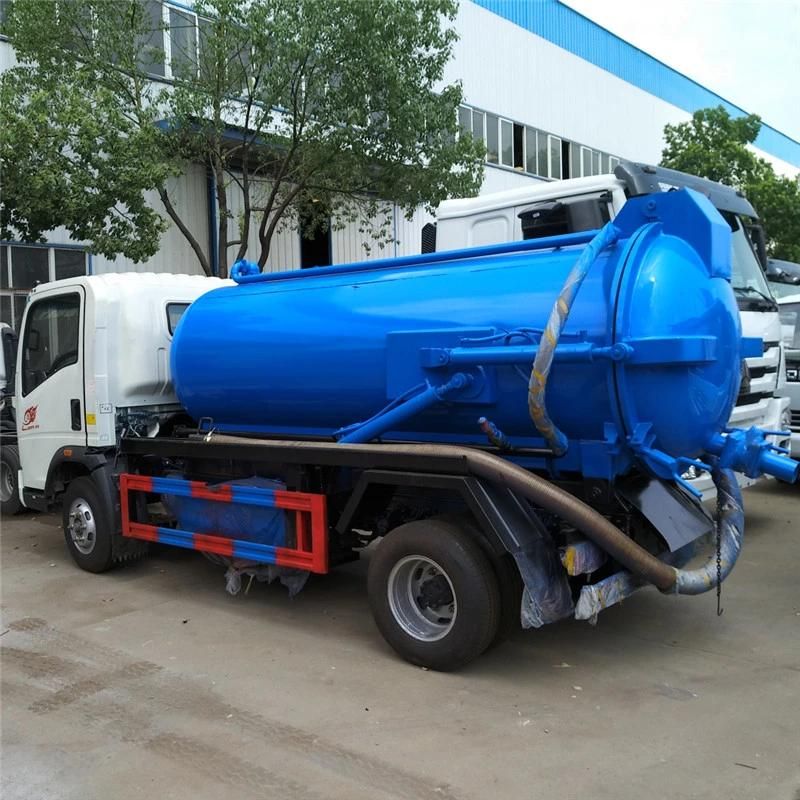

Detailed Images

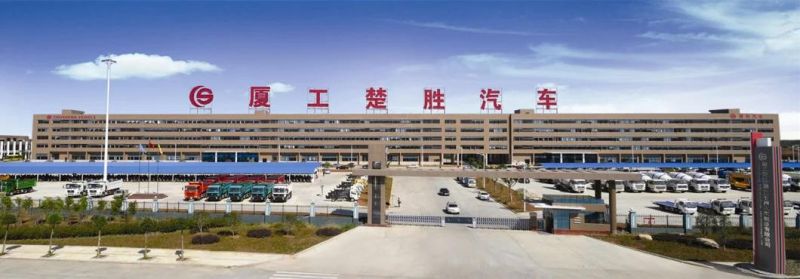

1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer  with professional  experience in special automobile field for more than 20 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2. Our products have been exported to 60 countries, including Middle East, Asia, Africa, Eastern Europe and other countries and regions.  Our product have passed the ISO9001 quality system certification, and CCC certificate.

3. Our company has more than 1000 units advanced production equipments, forming production lines for dump trucks, tank trucks, wrecker trucks, garbage trucks, other special trucks and semi-trailer, with an annual output of 50,000 units production capacity.



Packaging and shipping

Related products

Our Services

 Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.


After-sale service:
1. Lifetime free maintenance and upgrade. Spare parts could be supplied by cost price.
2. Free technician training, engineer abroad for customer service.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
4. Special service for big project, such as stadium, exhibitions, squares and so on.

Q1. Are your manufacturer ?
A : Yes. We can totally manufacture the trucks as you required.

Q2. Do you have a good organization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line, like MSK,PIL, SUNSHINE SHIPPING, ETC. The order over 500 units of vehicle, we will lease a vessel.

Q3. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.

Q4. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
