• Model NO.：CLW510LJC
• Transmission Type：Manual
• Payload：10ton
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Arm Type
• Condition：New
• Chassis Brand：Dongfeng, HOWO, FAW, JAC, Foton, etc
• Engine：190 HP
• Garbage Box Material：Carbon Steel
• Thickness of Box：4mm, 5mm
• Loading&Unloading：Hydraulic System
• Container Roll on Time：50-60s
• Container Roll off Time：40-50s
• Control System：Multi-Valve
• Color：as Per Customer′s Request
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：7800*2480*2760 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

 Upperstructure ParametersTotal mass (Kg)11,995Tank volume (m3)8 cbm

The rated load mass (Kg)

8450

Overall dimensions (mm)

7300*2470*2930Curb weight (Kg)6300

Bridge must take a

number of (a person)

3

Approach Angle/

Angle of departure (°)

20/17

Before hanging/rear

 suspension (mm)

1430/1570Axle weight (Kg)5600/10200Top speed (Km/h)98Chassis Technical ParametersChassis modelsDFL1160BX1V

The name of the chassis

The truck chassisBrand namewatershaveProduction enterprise

Dongfeng

commercial

vehicle co., LTD

Number of shaft2Number of tires6The wheelbase (mm)

4500, 4700, 5000,etc.

  Tire size

9.00R20 16PR

Steel plate spring

leaf number

7/9+6,8/10+8,10/11+10

Before the wheel

 track (mm)

1430Fuel typediesel

After the wheel

track (mm)

1860

Emissions according

 to the standard

GB3847-2005 countriesEngine type

ISD210 50ISD210 50

Engine manufacturing enterprisesDongfeng CumminsDisplacement (ml)

6700

Power(KW)180

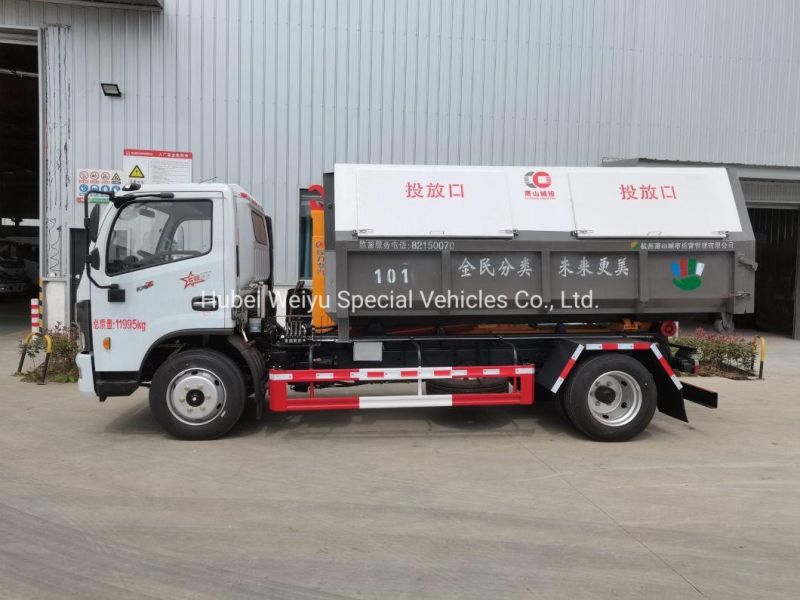

Product Show

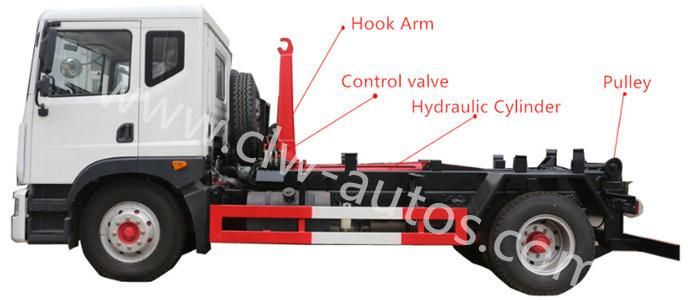

Main Parts
