• Model NO.：Concrete Mixer Truck 8CBM
• Service Brake：Dual-Circuit Air Brake
• Vibrating Amplitude：1.3mm
• Gear Box：Sinotruck Hw18709
• Transport Package：Container
• Specification：8715*2496*3800
• Trademark：Huaxing
• Origin：China
• HS Code：8413400000
• Production Capacity：200units,Year

ModelZZ5257GJBN3247C (8290)Whole Vehicle Performance & ParametersChassisHOWOCurb Weight (Kg)13500Total Vehicle Weight (Kg)25000Outline Dimension(L*B*H) (mm)8715*2496*3800Wheelbase (mm)3225+1350Front Overhang (mm)1500Rear Overhang (mm)2615Min. Clearance Above Ground (mm)314Max. Traveling Speed (km/h)90Min. Turning Diameter (m)17.3Oil Consumption per 100 km
(under limited conditions)≤25Vehicle ConfigurationClutchDry Single Disc Clutch (φ430)Gear BoxSINOTRUCK  HW18709Driving Type6*4Steering MechanismZF8098Service BrakeDual-circuit Air BrakeParking BrakingSpring-powered Air-cut-off BrakeAuxiliary BrakeEngine Exhaust BrakeTyre12.00(R)-20Engine Parameters
 ModelWD615.95(E);WD615.96(E)TypeIn-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel EngineEmission StandardEuro IIIDischarge Capacity (L)9.726LPower (HP)290 HP(2200r/min)Max Torque1350 N.m(1100-1600r/min)Mixing Drum ParametersGeometric Volume of Mixing Drum (m³)12.8Max. Mixing Cubage (m³)8-8.8Feeding Speed ≥3Discharging Speed ≥1.5Leftover Rate≤0.5%Max Rotating Speed (r/min)14-16Mixing Drum Obliquity (°)15Max Mixing Drum Diameter (mm)φ2162Driving SystemSpeed ReducerItalian BONFILI-577LHydraulic PumpUS EATON5423-518Hydraulic MotorUS EATON4633-045RadiatorGerman AKG with Vacuum MeterWater Supply SystemWater Tank Capacity (L)260Water Supply ModeWater Pump

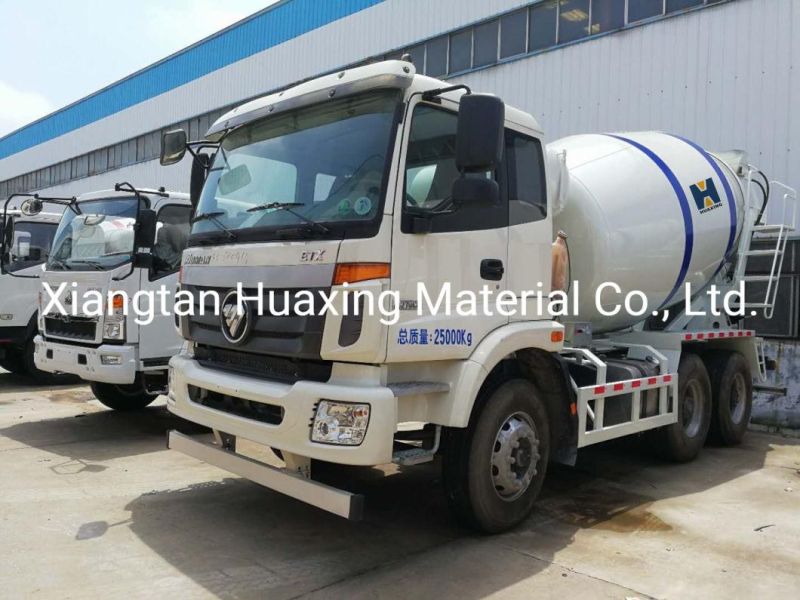

>>> Photo details



>>> Company Information
Xiangtan Huaxing Material Co., Ltd, started business since 1991, and was formally established as a registered company in 2002, with 5.3million RMB registered capital.
Before 2015, Huaxing focused on the domestic market, and is a qualified supplier of Jianglu group and XEMC in the military and mechanical products.
In 2015, Huaxing set up the international marketing department, specializing in exporting concrete construction machinery, mining Roadheaders, and the related spare parts and accessories. With manufacturing bases in Shenyang, Suizhou and Changsha cities.
Huaxing owns branches "Cahi "in Kiev Ukraine, and "Speedlane Trade Limited" overseas company. Mainly export to Pakistan, Ukraine, Russia, and other EU countries and Southeast Asian countries under our own brands "Speedlane" and '' HUAXING''.
Huaxing has got the CE certificate, and Ukraine's Coal Mining Safety certificate and permission. Cooperated with Ukraine largest energy company, DTEK group, the world top 500, and established a long term and friendly partnership.
Huaxing's enterprise value: Striving, Loyalty, Honesty and Altruism;
Huaxing's work concept: Tomorrow never comes; Never slug; Deliver positive energy!
Huaxing's mission:
One Stop Shop in engineering construction machinery;
China Machinery, Global Services!



>>> Logistics and payment

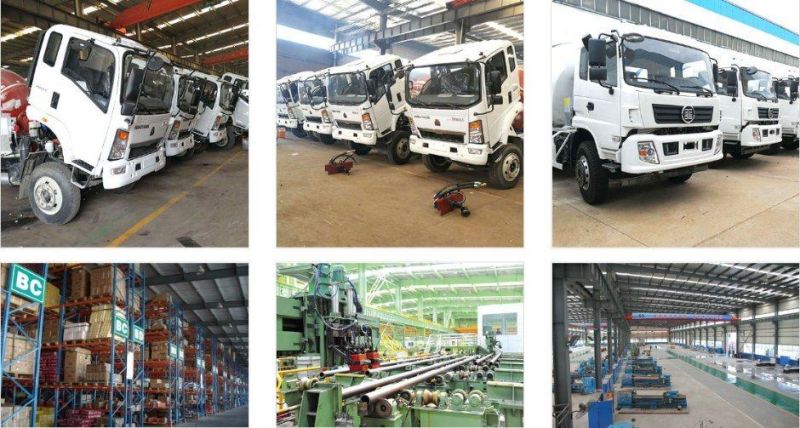

>>> Our Factory



>>> Company Certificates

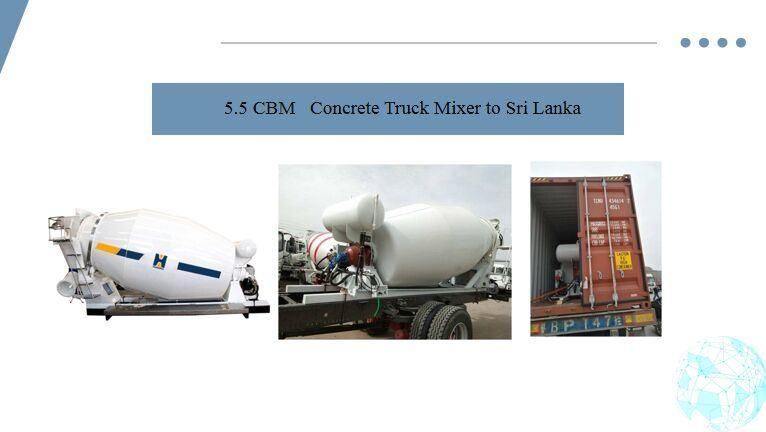

>>> Successful cases
