• Model NO.：WGT5141XYL
• Horsepower：210-260hp
• Axle：Single
• Condition：New
• Origin：China

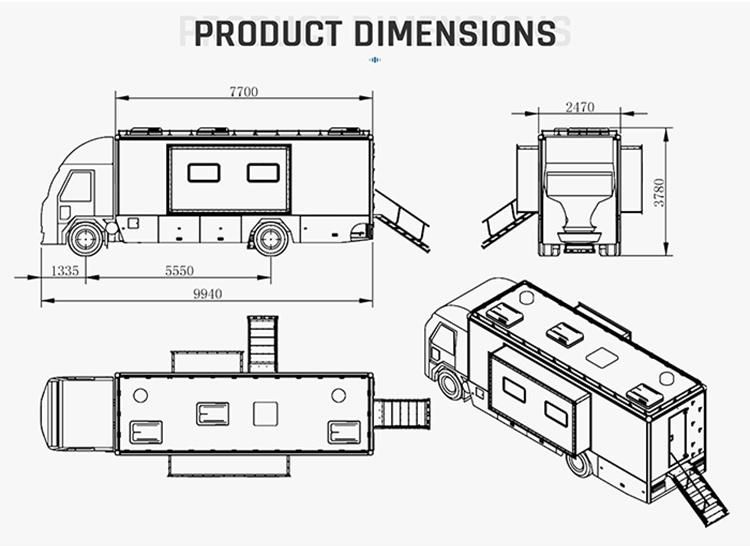

Dimension (mm):11990*2500 (expanded 3800) *3990

Cabin dimension (mm):9307*3645*2105

Maximum total mass (kg) : 18245

Maximum speed (km/h) : 110

Number of passengers in the cab:3

Maximum net power (kW) : 245

Fuel type: diesel

Ground clearance ≥280mm

Chassis:SINOTRUCK SITRAK

Gearbox:9-speed automatic

Engine:MC07.34-50

Displacement (ml): 6870

Maximum net power (kW) : 245KW

Maximum torque/speed (N.m/(R /min) : 1250/1200-1800

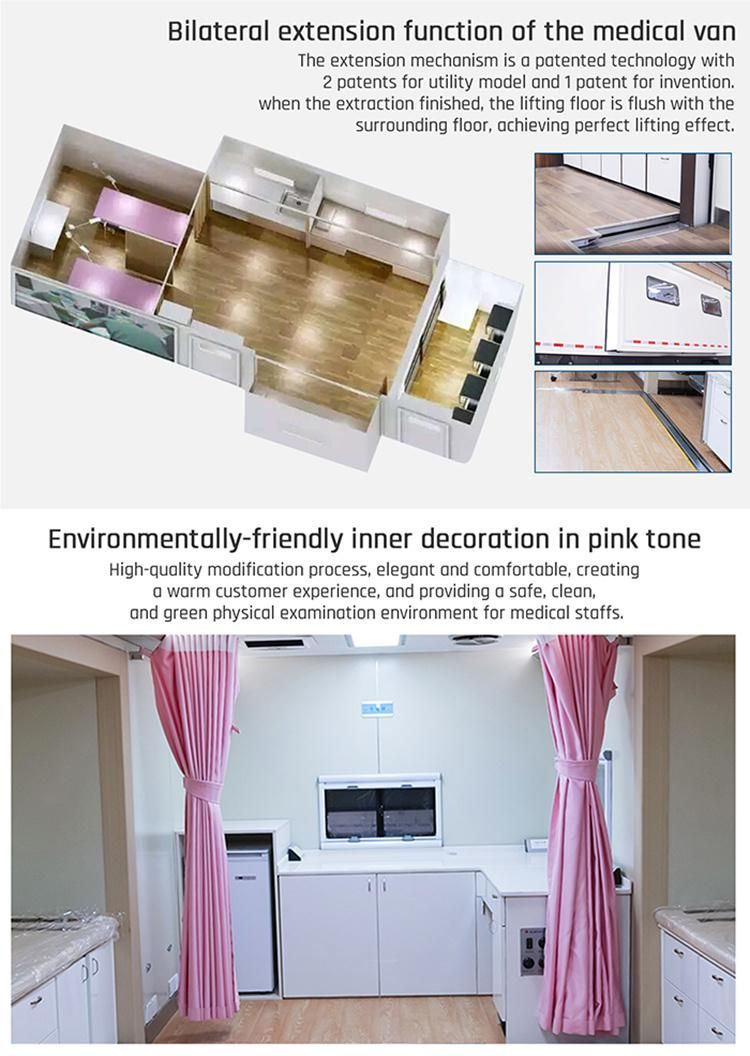

Extension Compartment System

Transmission mechanism: NMRV075 PS70 -- HD14

Reduction ratio: 60*8

Output speed (rpm): no load 3.75, load 3.1

Output torque (Nm):290

Extension width on both sides of the extension compartment (mm):650

Extension and recovery time of extension compartment (s): about 50

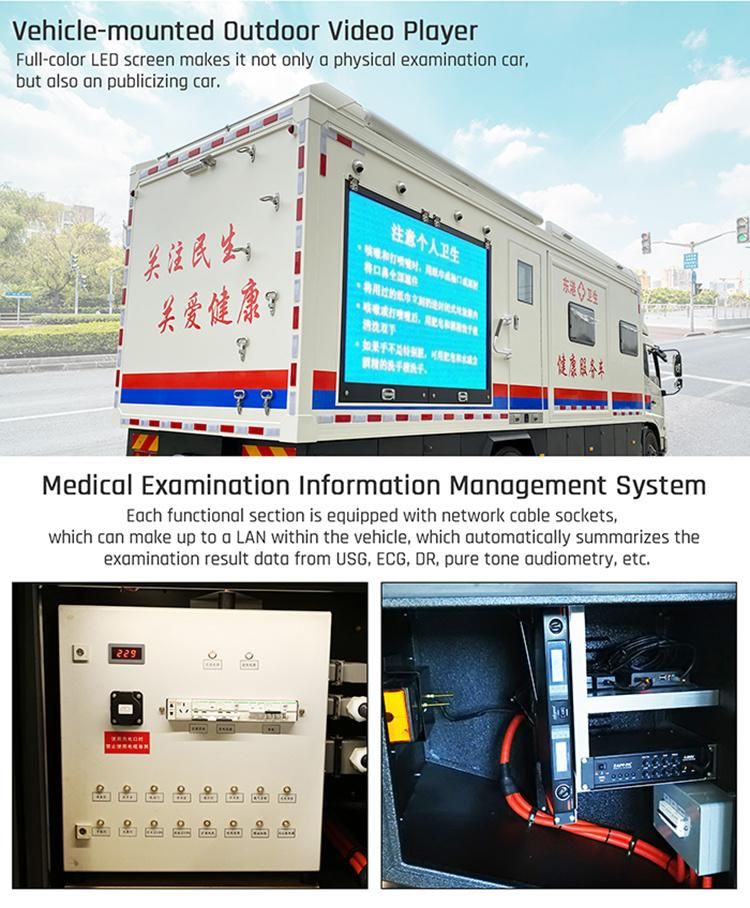

Electrical System

Supply power:220V alternating current or use vehicle-mounted generator

Output voltage precision:≤5%

Equipment:voltage protection device

 Waterway system

Water tank:80L water tank, 60L sewage tank

Water pump:DP-100 micro diaphragm water pump

Hand dryer:KV-8268A automatic high-speed hand dryer

Hand sterilizer :KV-2012S

Oxygen bottles:8 oxygen bottles,20L

Pipeline:DIA12,50m

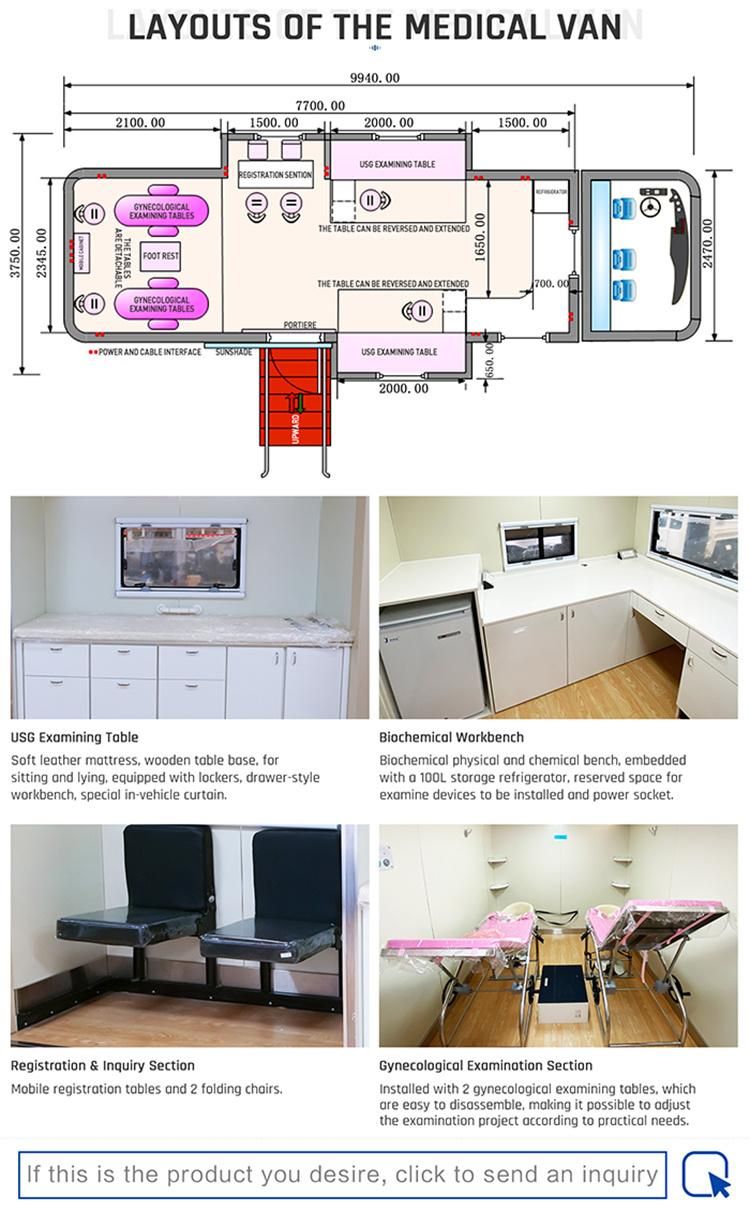

Medical Equipment

Electric operating bed(L*W):2100mm*500mm, minimum table top: 750mm

Medical thermostat:50L medical thermostat,FYl-YS-50LK, AC220V

Stretcher:YXH-3A2, made of aluminum alloy, bearing 159kg, controllable mechanical leg folding, sponge cushion, size 1900 × 550 × 920mm
