• Model NO.：CLW5086LJC
• Payload：7ton, 8ton, 9ton,10ton
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Swing Arm Type
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk, etc.
• Hopper Size：10cbm, Ground Type
• Loading Capacity：6ton, 7ton, 8ton
• Hopper Thickness：4mm, Carbon Steel Q235B
• Protective Material：Q235A Carbon Steel
• Hopper Quantity：as Per Customer′s Request
• Dump Type：Hydraulic Cylinder Lifting and Self-Loading
• Controlling Way：Three-Way Hydraulic Control Valve
• Color：as Per Customer′s Request
• Transport Package：Naked Pack with Wax
• Specification：7350*2500*3350 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension7350*2500*3350 (mm)Gross Vehicle Weight16000(Kg)Curb Weight6660(Kg)Chassis SpecificationChassis BrandDongfeng D9Drive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModel160HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power118KW/160HPEmission standardEURO 3Displacement5900(ml)Fuel typeDieselGearbox6Forwards & 2Reverse, manual operation, with power steering.Brake SystemAir breakWheel Base3950mmFront/Rear Axle Loading3600/8000(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire9.00R20, 6pc with 1 spare tireMax Driving Speed90(km/h)Upperstructure SpecificationGarbage HopperDimension3700×1850×1400mmStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 8CBMLoading Capacity6TonThickness5mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration

1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

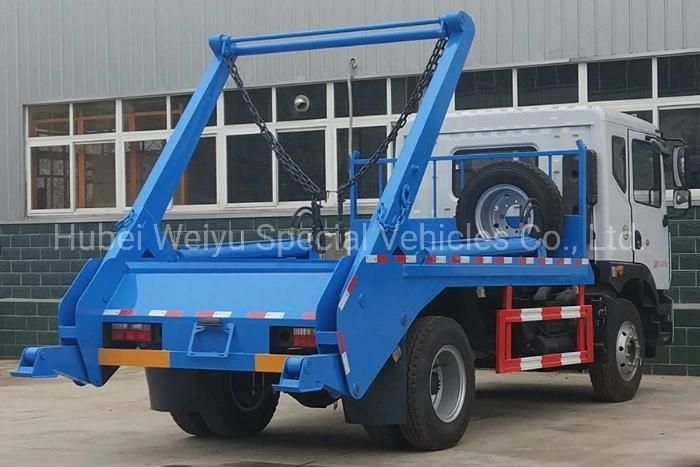

   Reference Photos

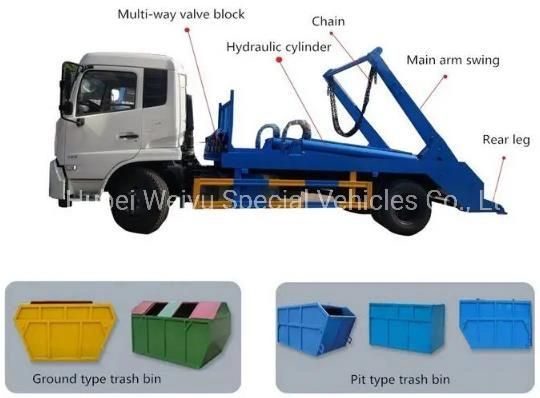

   Main Structure and details


   Company Introduction


   Certificates



   Our Overseas Exhibition
