Factory Price Hot Sale Mobile Health Clinic Mobile Medical Clinic Services Medical Truck
WEIHAI GUANGTAI AIRPORT EQUIPMENT CO., LTD.- After-sales Service：Yes
- Warranty：One Year
- Certification：CCC
- Transmission Type：Manual
- Fuel：Diesel
- Length：8-15m
Base Info
- Model NO.：WGT5162XYL
- Horsepower：210-260hp
- Axle：Single
- Condition：New
- Origin：China
Description
Specification No.
4802C-003
Quantity
Chassis
Dongfeng DFL5160XXYBX2V
Engine
Model: ISD21050
Type: Inline 6 cylinder, supercharged intercooled, high pressure common rail diesel generator
Displacement (ml): 6700
Fuel type: diesel
Rated power / speed (kW / (r / min)): 155/2500
Maximum torque / speed (N.m / (r / min)): 800 / (1300-1500)
Van

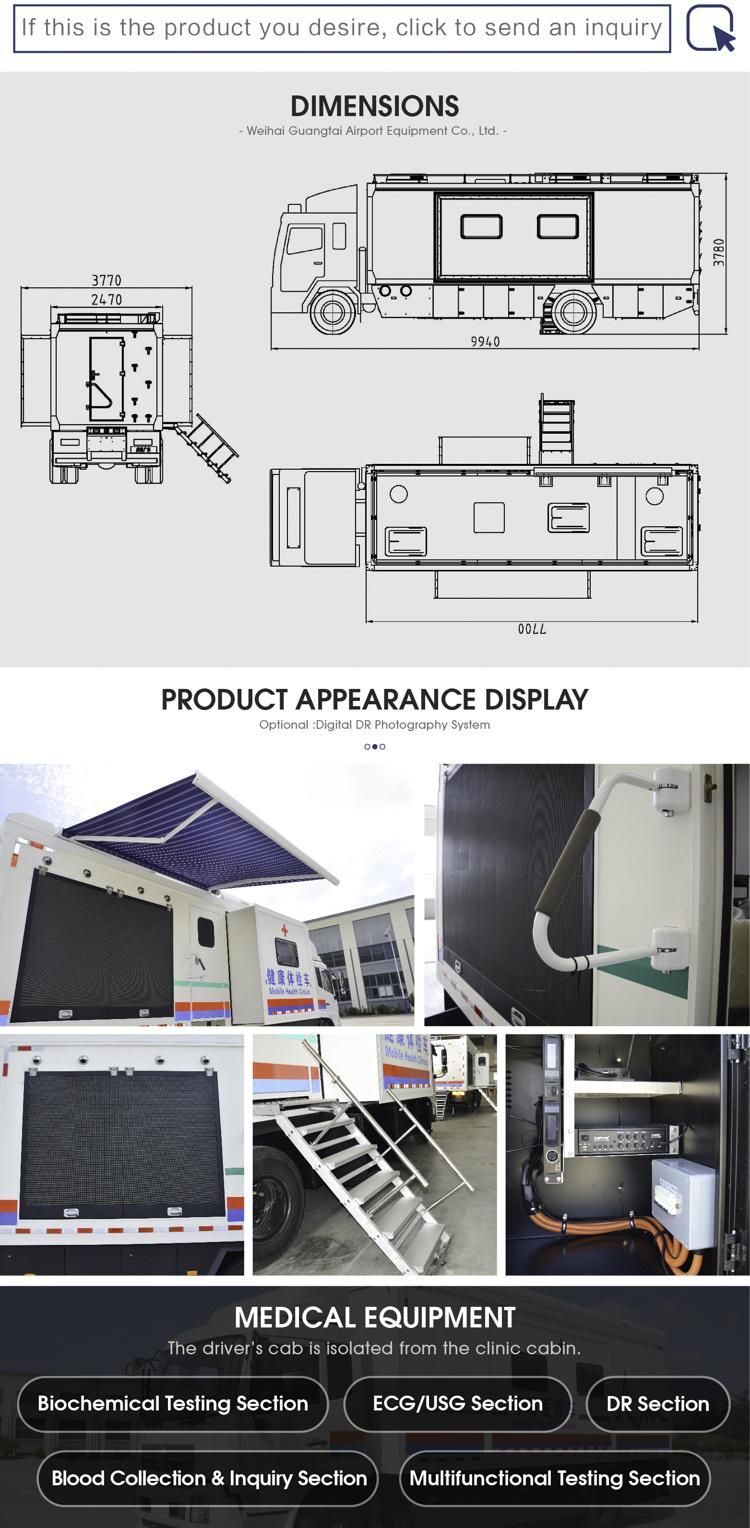

Interior dimensions (length, width, height / mm): 7610 * 2345 (3645 after expansion) * 2035
The top of the Vehicle has a thickness of 70mm and a peripheral thickness of 46mm.
Van Expansion
Electronically controlled automatic expansion and contraction
Supporting System
4-point electric support cylinder support (motor 520W)
1

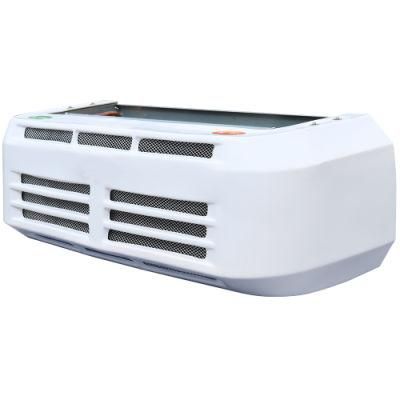

Conditioner
KD-35cb, cooling 3.5KW, heating 2.4KW
3
Extractor Fan
20W, displacement: 5 cubic meters / minute
2

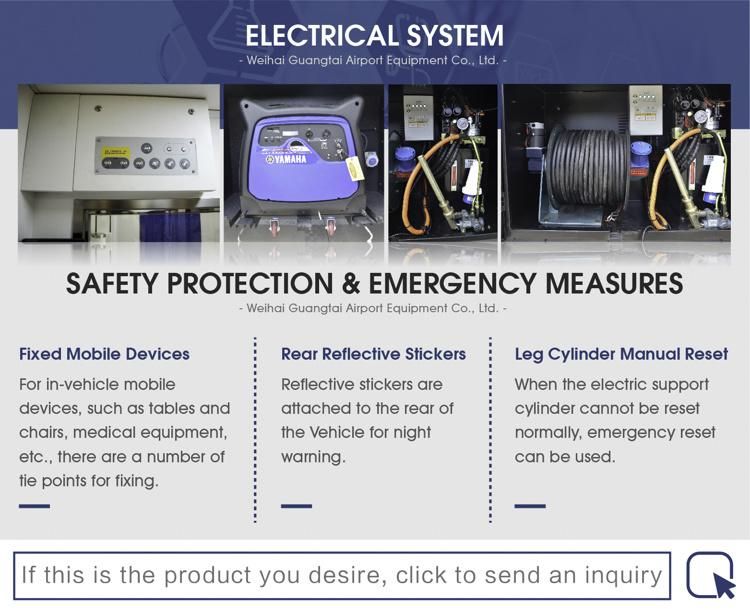

Generator Set
Output AC220V, 5.5KW
1
Generator Set Lifting System
Electric cylinder drive, motor DC24V, 60W
1
Awning
Electric (full box DS800)
1
Cable Reel
JT-50-3-I, pedal electric telescopic (24V DC )
1

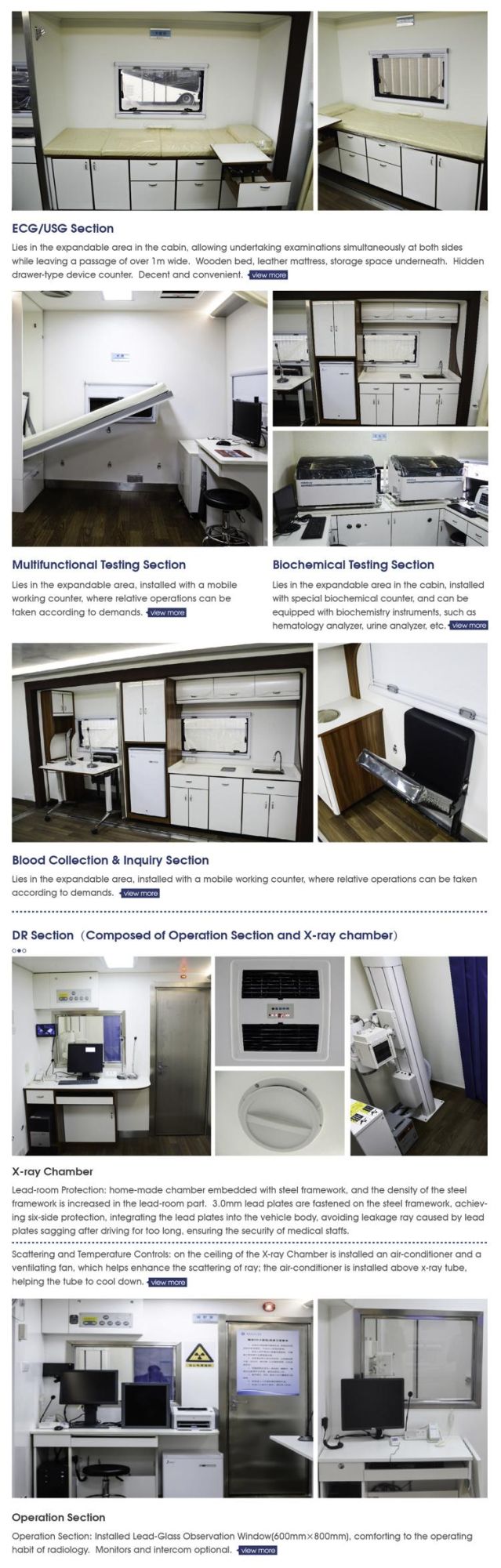

Lead room protection
The X-ray protection level is in accordance with the level of GBZ130-2002, and the X-ray leakage according to the conditions specified in GBZ117-2006 is ≤2.5uGy/h.
The tube has a wire harness away from the X-ray console, and the lead plate around the lead room is affixed with a lead plate ≥ 2.5 lead equivalent.
A lead glass observation window is placed in the X-ray console;
1
100L Medical incubators
The main parameters:
Volume: 100L
Voltage: DC12V-24V
Cooling power: 70W
Box temperature: -12 ° C ~ 10 ° C
Dimensions: 485 × 490 × 843
1
Bed
With a length of 2 meters and a width of 0.6 meters, the bed is equipped with lockers for medical equipment and medical supplies.
1
Chair
Liftable
Electric hand basin
Electric operation, with water purification, sewage tank 25L each, stainless steel
1
LED full color outdoor screen
P4 standard full color waterproof outdoor screen with power amplifier and voice system, area 1.605m*2.148m
1
Fuel heater system
Plumbing heater
Model: YJH-Q15A
Voltage: DC24V
Fuel type: diesel
Heating power: 15KW
Heater
Model: 120.27.106
Voltage: DC24V
Heating power: 5.2KW
Electric power: 100W
1
